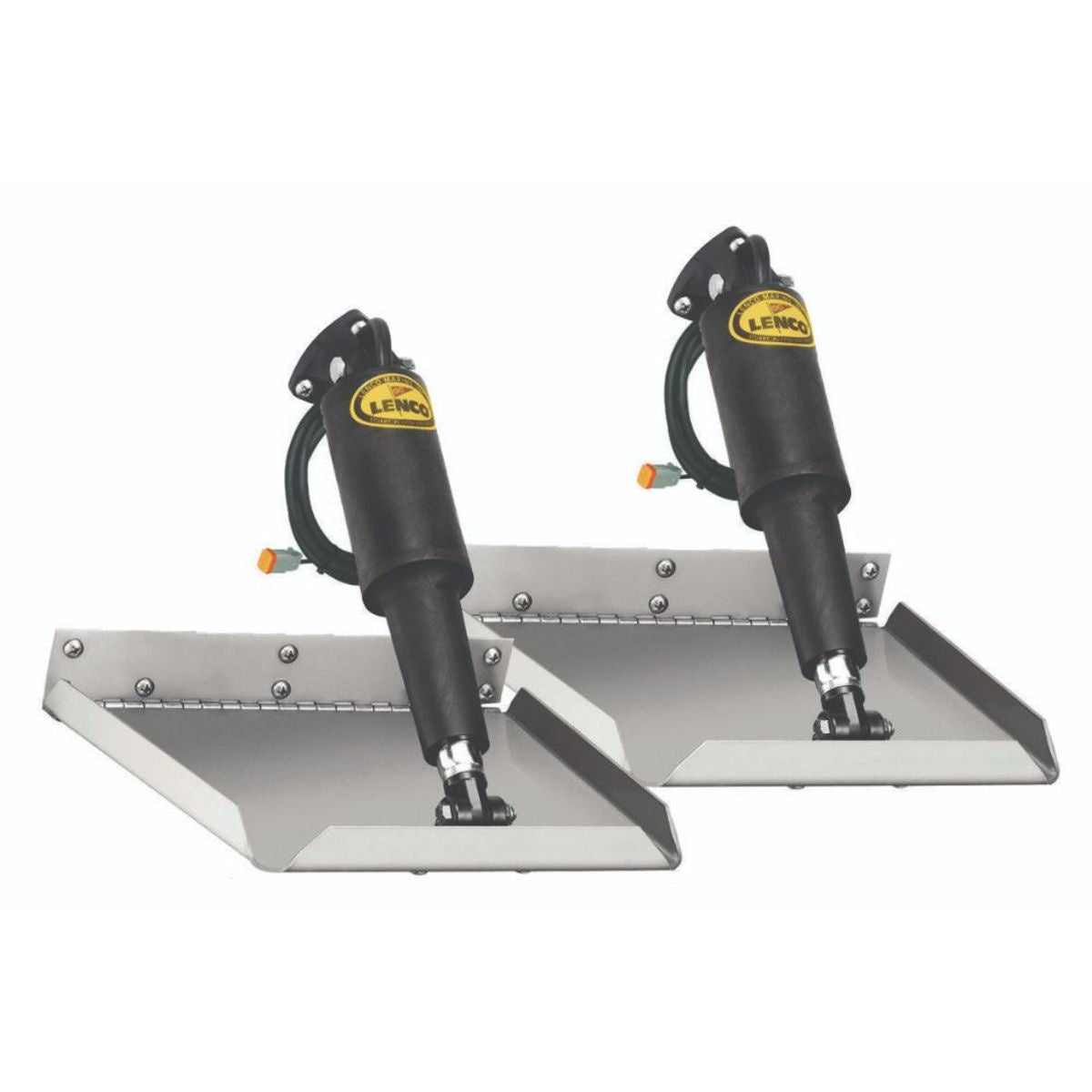

Lenco 12" x 18" Edge Mount Trim Tab Kit

Lenco 15017-101 is designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 1/2" (1.3cm) lower mounting height on 9" (22.9cm) long blades & 3" (7.6cm) lower mounting height on 12" (30.5cm) long blades. All edges are turned up for added strength and style. Boat lengths 26' (7.9m) to 36' (11m). Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with 1" (2.5cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8" (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Hinge Height: 2" (5.1 cm) Min Transom Height: 13.5" (34.3 cm) 12 volt Kit Contents: 2 x 12-gauge stainless steel standard finish blades 2 x Lenco 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors 2 x Lenco 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length 2 x Lenco 15085-001 upper mounting brackets with gland seal 2 x Lenco 50014-001 lower mounting brackets Lenco owner's/installation manual * Available in electro-polish finish. Contact ASAP Sales for info.
