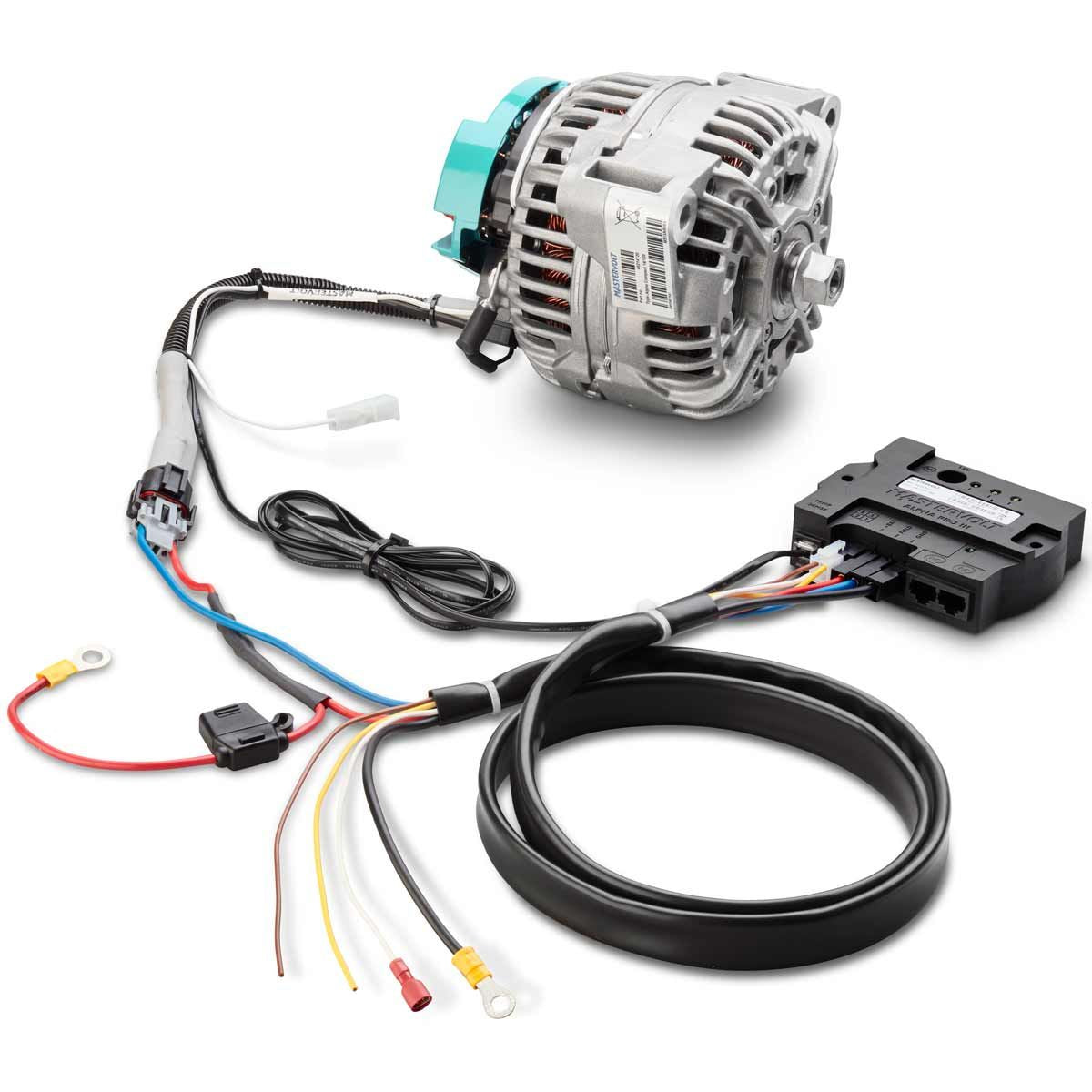

Mastervolt Alpha Compact 14/200 with Alpha Pro III and Pulley (12V)

Alpha Compact 14/200 alternators are optimised to deliver continuous high power output in energy storage applications. Combined with Mastervolt Alpha Pro regulators, they create a high performance, plug-and-play charging solution. This combination is suitable for all battery types, including Lithium Ion. These automotive style alternators offer many advantages. Most manufacturers offer a second alternator option, better known as PTO or Power Take Off option. This provides a straight-forward way to add an Alpha Compact as a second alternator. Alternatively, the stock alternator can be replaced with an Alpha Compact to obtain a powerful, MasterBus enabled 3-step charger. Compared to conventional alternators, Alpha Compact offers lower weight, smaller dimensions and reduced fuel consumption. This is made possible by its open construction with double internal fans. An integrated temperature sensor controls the operating temperature. Applications: Worldwide use in marine, mobile, infrastructure and industrial applications. General specifications Charge regulation: an Alpha Pro III charge regulator comes standard with all models Isolated operation: yes, with optional isolation bushings Rotational direction: clockwise Galvanic isolation: non-isolated Cooling: integrated dual fan Mounting: direct mounting Pulley included: yes (Mastervolt 48420110) Weight: 7.5 kg (16.5 lb) Technical specifications: System voltage: 12V DC Nominal current (at 6000 rpm, 25°C): 200A Charge current (at 1800 rpm, 25°C): 106A Cut-in speed: 1350 rpm Max. rotational speed: 20.000 rpm Power Take Off: 5.6 kW (7.6 hp) Max. operating temperature: 120°C (248°F) Connections: positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug Temperature sensor: integrated, RJ12 connection
