AG Tee Ball Valve PN50 1/4" BSP Male to Female 1-75290

Good quality full flow ball valves at competitive prices. Suitable for industrial pneumatic & hydraulic installations including gasoline fuel oils kerosene petrol & diesel. Ideal for hot & cold water different oils & compressed air.

Minimum 100,000 operation design

90 degree movement by either lever or tee handle

Materials:

Body: Nickel plated brass CW 617N

Ball: Hard chrome-plated brass CW 617N

Stem: Brass CW 614N

Seal: Pure Teflon (PTFE)

O Rings: Viton / NBR

Tee Handle: Red coated aluminium UNI 5076

Working Temperatures:

-20 Degrees C 150 Degrees C in absence of steam

WARNING the formation of ice can severely damage valves & piping

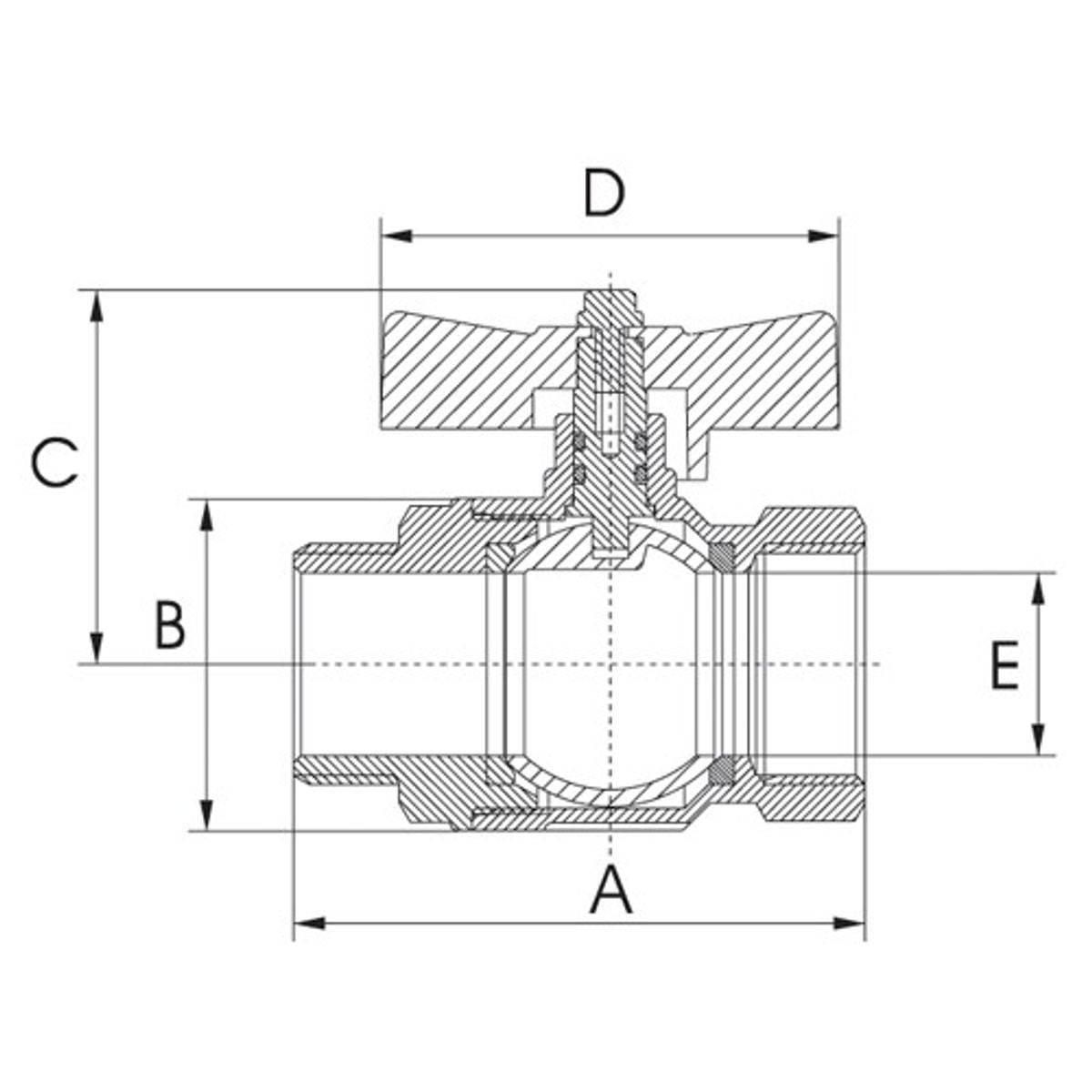

Technical Specification

BSP Parallel Thread ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228)

Bar* - Pressure Atmosphere Kg/cm Cubed
