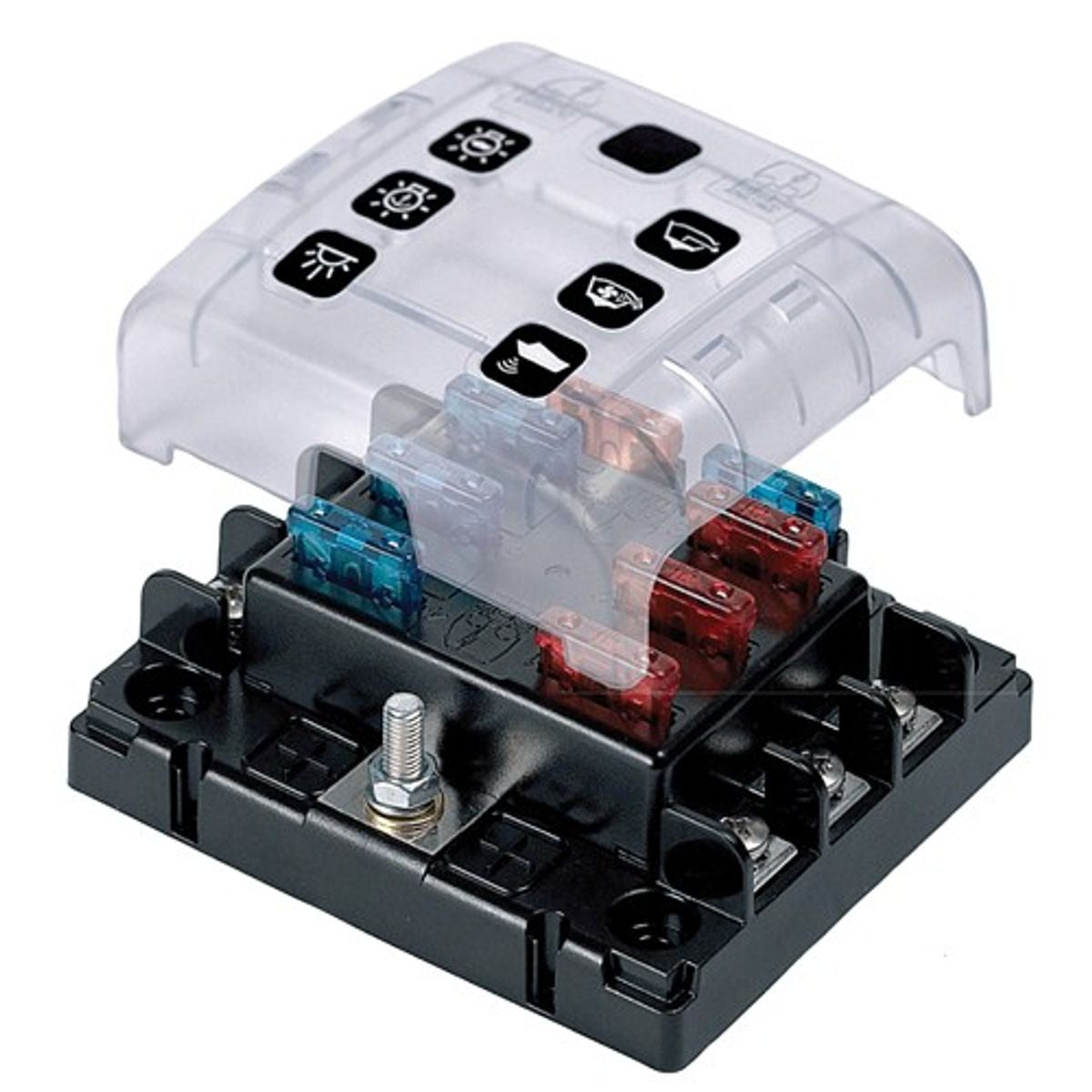

The BEPâ„¢ ATC Fuse Holder provides compact, easy access to fuses with the design integrity only BEP can offer.
Allows for multiple fuse holders and bus bars to be joined together, increasing the number of circuits protected
Fuse holder inputs can be linked together to form a single continuous fuse holder
Includes patented Contour Lock system, see-thru clip-on cover and label set
Available with screw terminals or quick connect terminals
Positions for spare fuses
Specifications: ATC Fuse Holder
Max. current / circuit: 30A;
Max. current / block: 100A;
Max. voltage: 32V DC;
Base & cover material: Polycarbonate
Dimensions W x L x H: 80 x 90 x 47mm (3.1" x 3.6" x 1. 9")
