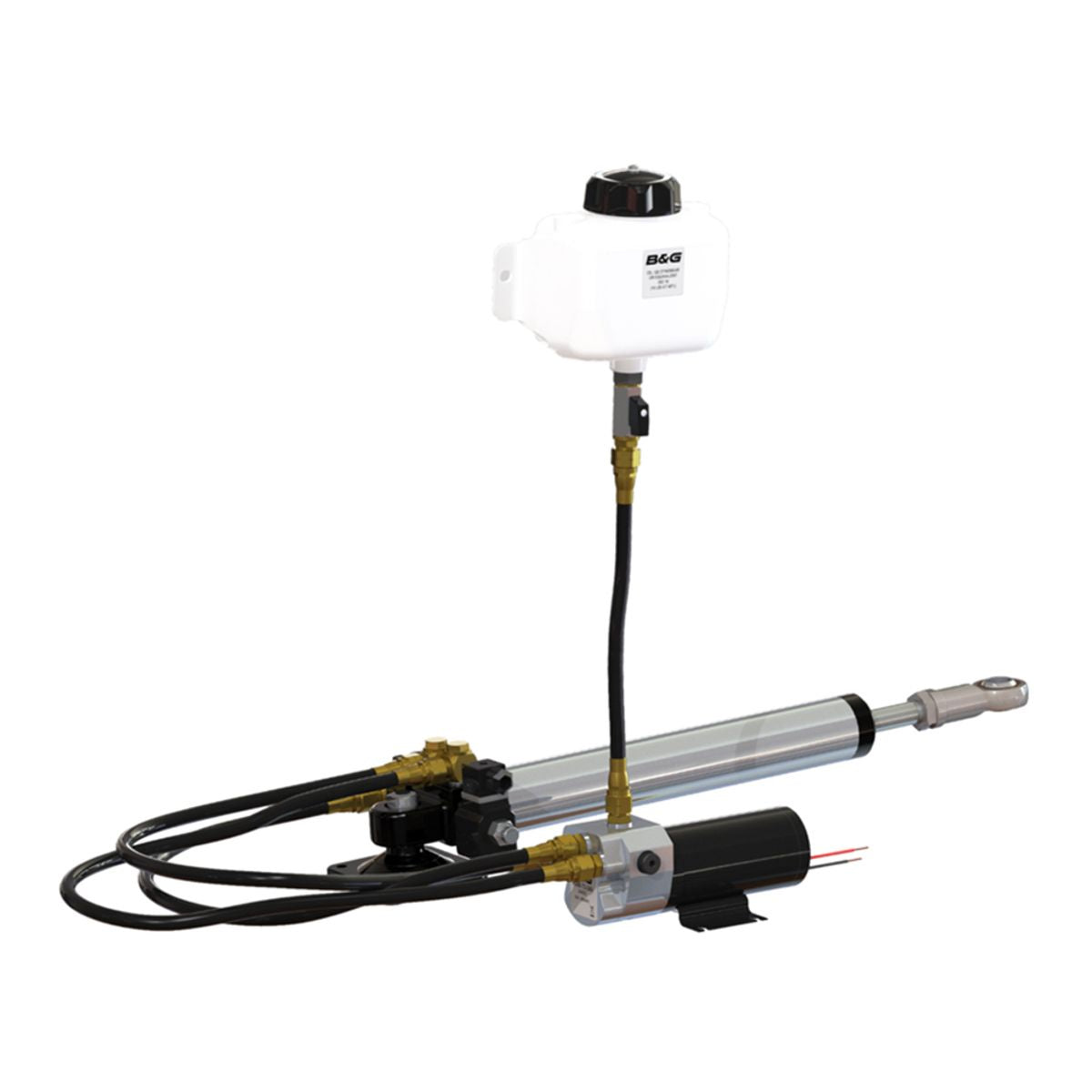

A high-power drive unit for maximum power with minimum consumption. The Ram T3 unit allows the Power Steer mode on the pilot to be used in case of manual steering failure.
T3 drives have a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder.
Max. boat size: 79,000 lbs (36,000 kg)
Stroke: 11.8†(300mm)
Hard over time: 13 seconds
Tiller arm: 10.11†(257mm)
Thrust: 2425 lbs (1100kg)
Rudder torque: 623.9 lbs (283kg)
Required computer: AC42/NAC-3 - 3/H5000
