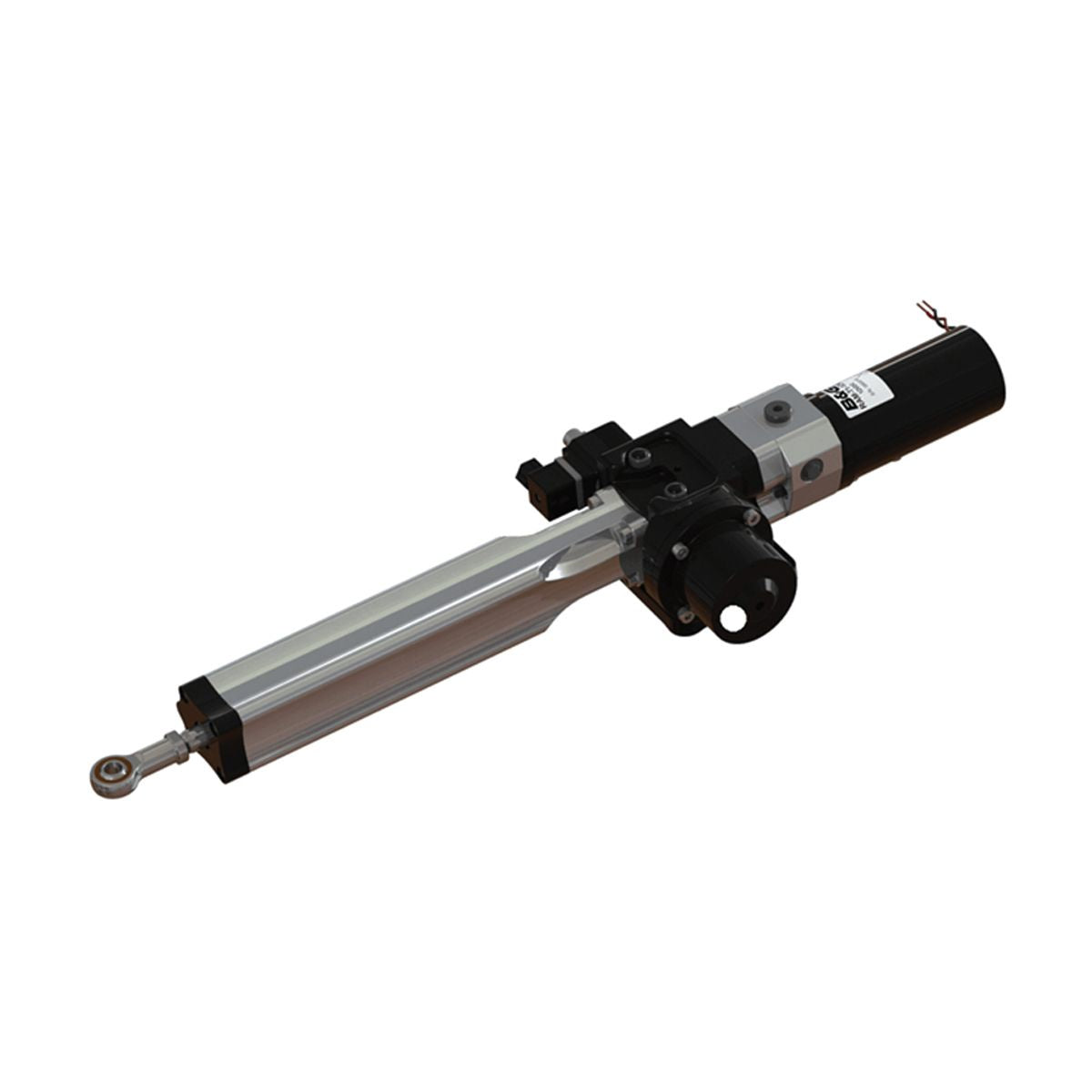

B&G Hydraulic Autopilot Ram T1 12V

A high power, efficient 12V hydraulic autopilot drive unit that enables the Power Steer Mode on a Pilot to be used in case of manual steering failure. - Model: T1 12V - Max boat size: 12,000kg - Stroke: 250mm - Hard over time: 13 seconds - Tiller arm: 213mm - Thrust: 700 kg/f - Rudder torque: 149 kg/m - Computer: NAC-3/H5000 - Typical Amp-hour 60kg at 25% duty (12V): 2.0 - Typical current intermittent 650kg (12V): 19.0 - Ingress protection: IP67 - EMC protection: BS EN 60945:2002 (DC) - Ignition protection: BS EN 28846:1993 - Declaration of Conformity: EMC Directive 2014/30/EU - Ambient operating temperature: -15 to + 55 deg C - Max operating thrust: 700kg (Intermittent) - Relief valve setting: 62 bar (730kg) - Orientation - Red lead to positive - Extends - Orientation - Black lead to positive - Retracts - Clutch coil: 12 watt - Clutch connection: DIN 43650 (6-8mm cable) - Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV The following commercial fluids are suitable: Fuchs Renolin B 15 HV1, Seastar HA5430
