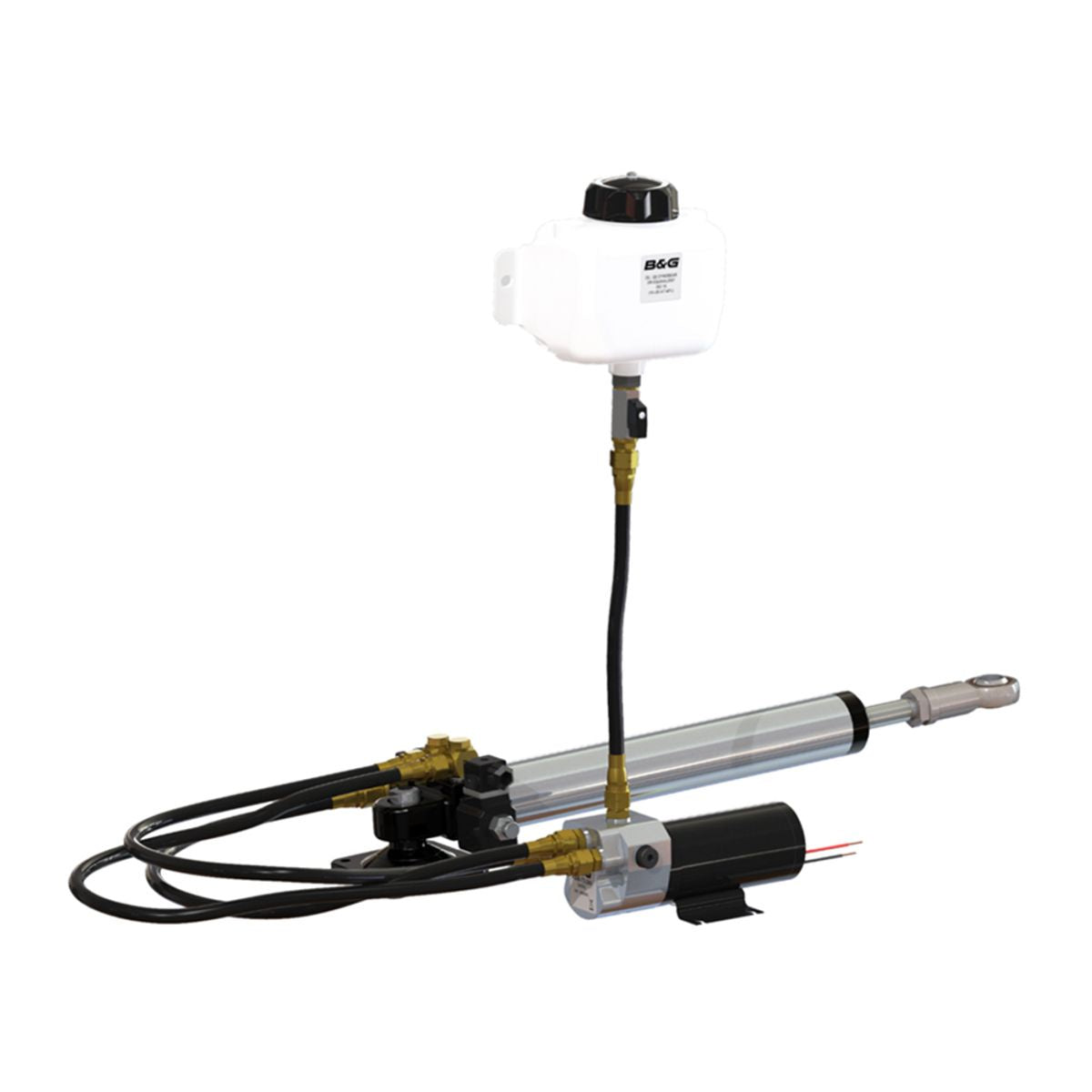

B&G Hydraulic Autopilot Ram T3 24V

A high power, efficient 24V hydraulic autopilot drive unit that enables the Power Steer Mode on a Pilot to be used in case of manual steering failure. - Model: T3 24V - Max boat size: 36,000kg - Stroke: 300mm - Hard over time: 13 seconds - Tiller arm: 257mm - Thrust: 1100 kg/f - Rudder torque: 283 kg/m - Computer: NAC-3/H5000 Pump: The pump fitted to the RAM T3+ system is the PR+25 model. Please refer to the PR+ manual for technical and service details. Cylinder - Volume: 538 cc (Nominal) - Area: 176.6 mm² - Stroke: 305 mm - Adjustment: ± 15 mm Performance - Maximum thrust (intermittent): 10980N at 55 bar - Hard over time nominal: 13 seconds - Temperature rating minimum: -20ºC - Temperature rating maximum: +65ºC - Relief valve setting: 62 bar (12400N) Orientation: Red lead Positive - Cylinder Retracts Clutch - Coil voltage nominal: 12 or 24 V DC - Coil power continuous: 12 watt - Protection: IP65 - Connection: DIN 43650 2 Core 2.5 mm² - Declaration of Conformity: EMC Directive 2014/30/EU - Fluid: ISO VG10 to VG40 Hydraulic mineral fluid meeting ISO 6743-4 HV The following commercial fluids are suitable: Fuchs Renolin B15 HV1, Seastar HA5430 Ports - Cylinder: G1/4(BSP) parallel BS2779’73 Hoses - Threads: 5/8-18 SAE female swivel - Material: Brass - Type: Marine Steering Hose 1000 PSI Working Pressure 5/16” I/D - Length: 1 meter Materials - Body: Aluminium BS 1490 - Cylinder rod: Stainless Steel Chrome Plated - Seals: Nitrile & PTFE - Body protection: SP270
