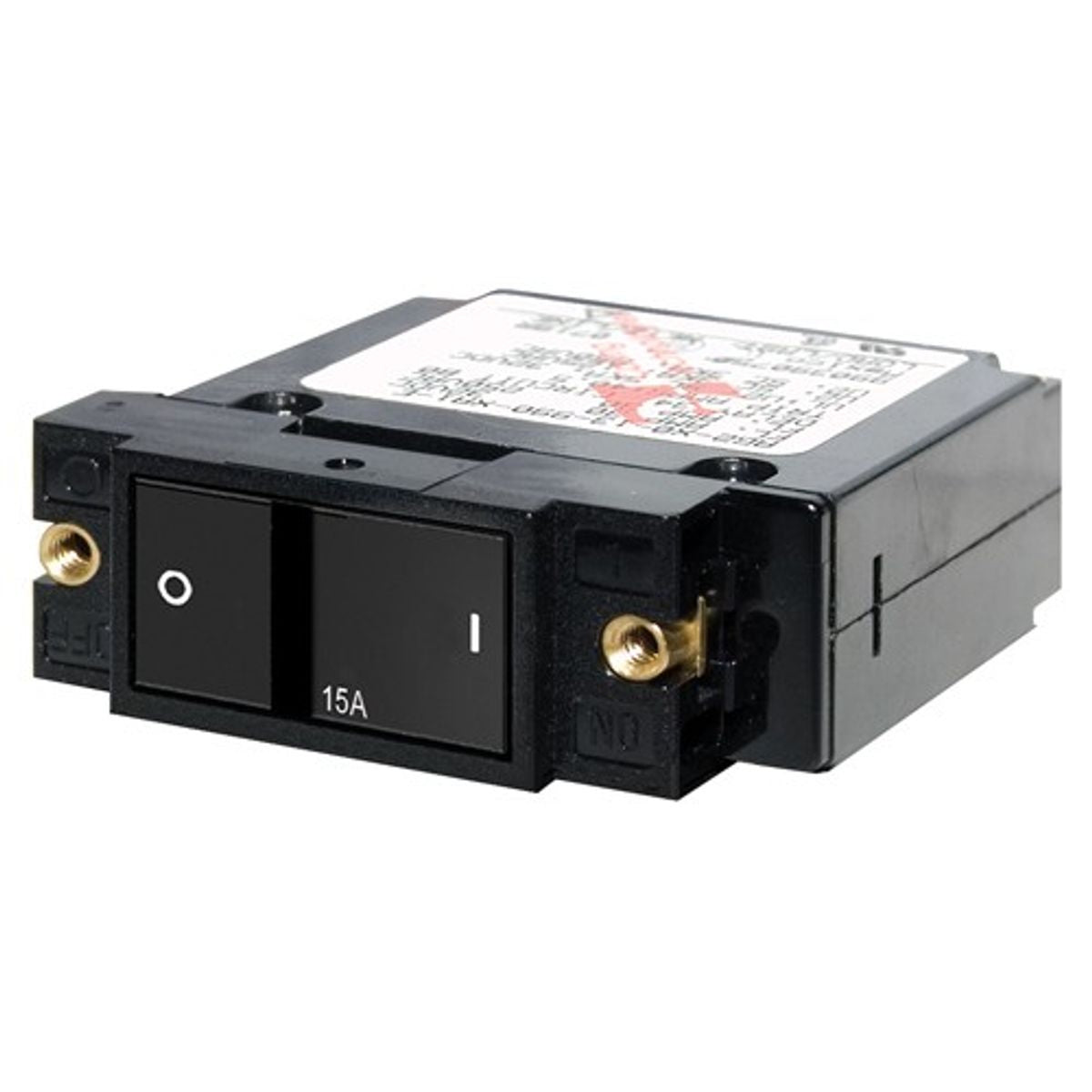

A-SERIES FLAT ROCKER CIRCUIT BREAKER (AC/DC)
Standard circuit breaker used on the 360 Panel System (1200 Series)
Flat actuator resists accidental switching by being flush in the ON position
White actuator indicates OFF position
Single pole is frequently used for AC or DC Branch circuit protection
International ON & OFF symbols support vertical or horizontal mounting
Switching cycles: 10,000 @ rated A & V
Type: Magnetic hydraulic -Trip free
Terminal screw: #10-32 Stainless Steel
Terminal screw torque: 14-15 in-lb recommended (load terminal is 30° angled)
Mounting screw: #6-32 Stainless steel
Mounting screw torque: 6-8 in-lb recommended
