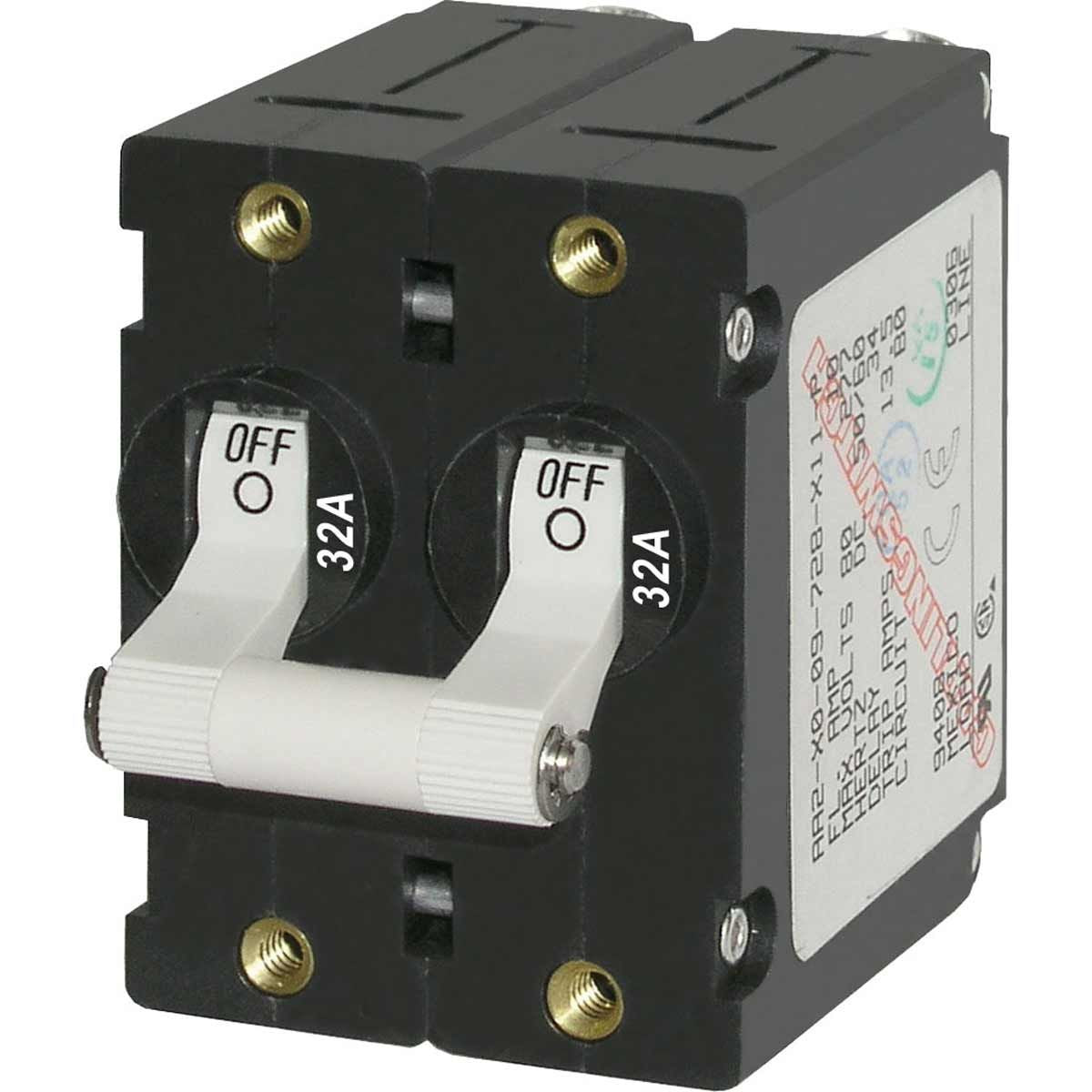

Blue Sea Circuit Breaker Double Pole 32 Amp

A-SERIES DOUBLE POLE MAGNETIC AC CIRCUIT BREAKER Used as AC main circuit breakers to switch both live and neutral legs With neutral circuit on one pole and live circuit on other pole, both poles will trip if either pole trips • CE marked, TUV certified, CSA certified • UL 1077 recognised • Max amperage: 50 Amps • Max voltage: 250 Volts AC • Circuit breaker type: Magnetic Hydraulic - Trip Free • Operating Temp Range: -40ºC to +85ºC • Terminal Screw: #10-32 SS - Recommended torque 14-15 in-lb* • Rated switch cycles: 10,000 @ rated amperage & voltage • Mounting screws: #6-32 SS - Recommended torque 6-8 in-lb
