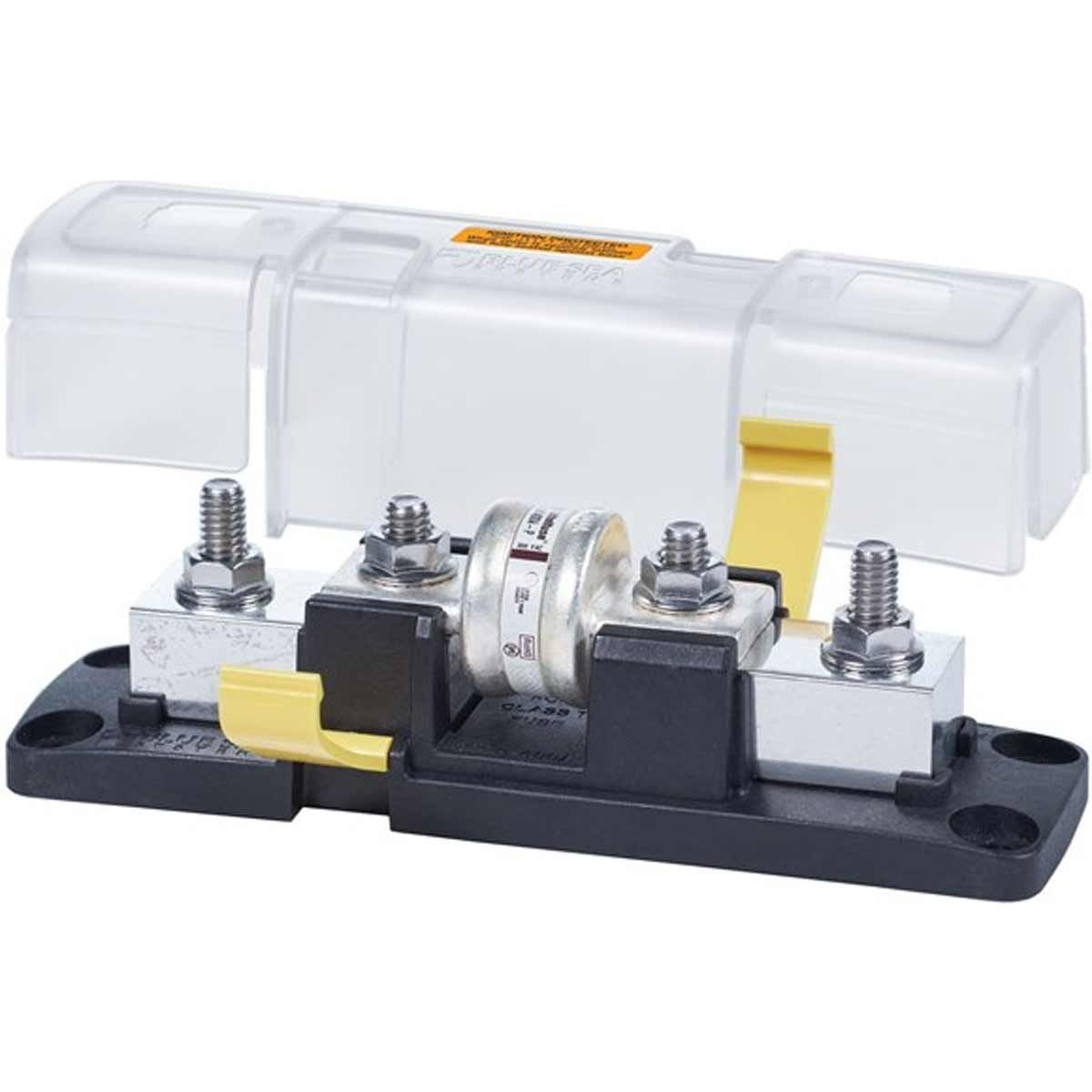

Blue Sea Fuse Block Class T Ignition Protected 225-400A

Blue Sea Class T Fuse Block 5502100 suitable for 225 amp to 400 amp fuses, supplied complete with insulating cover. This fuse block allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics. - Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse - Insulating cover satisfies ABYC/USCG insulation requirements - Cover breakouts allow wire access in any direction - Stud design ensures secure fuse mounting even with high heat - Stainless steel studs provide resistance to corrosion and high torque - One-piece stainless flange nuts ensure safe and secure connections - UL 94-V0 base resists high heat - Ignition Protected Cable Size: Up to 4/0 AWG Ignition Protected: Yes Maximum Amperage: 320A, 300A if inside engine space and continuous Maximum Voltage: 160V DC Fuse Mounting Blocks: Tin-Plated Copper Mounting Fastener Size: 1/4" or M6 Hardware Terminal Stud Size: 5/16"-18 (M8) Weight: 0.5 kg (1.10lb) Approvals: Ignition Protected, ISO 8846 Marine & SAE J1171 Marine
