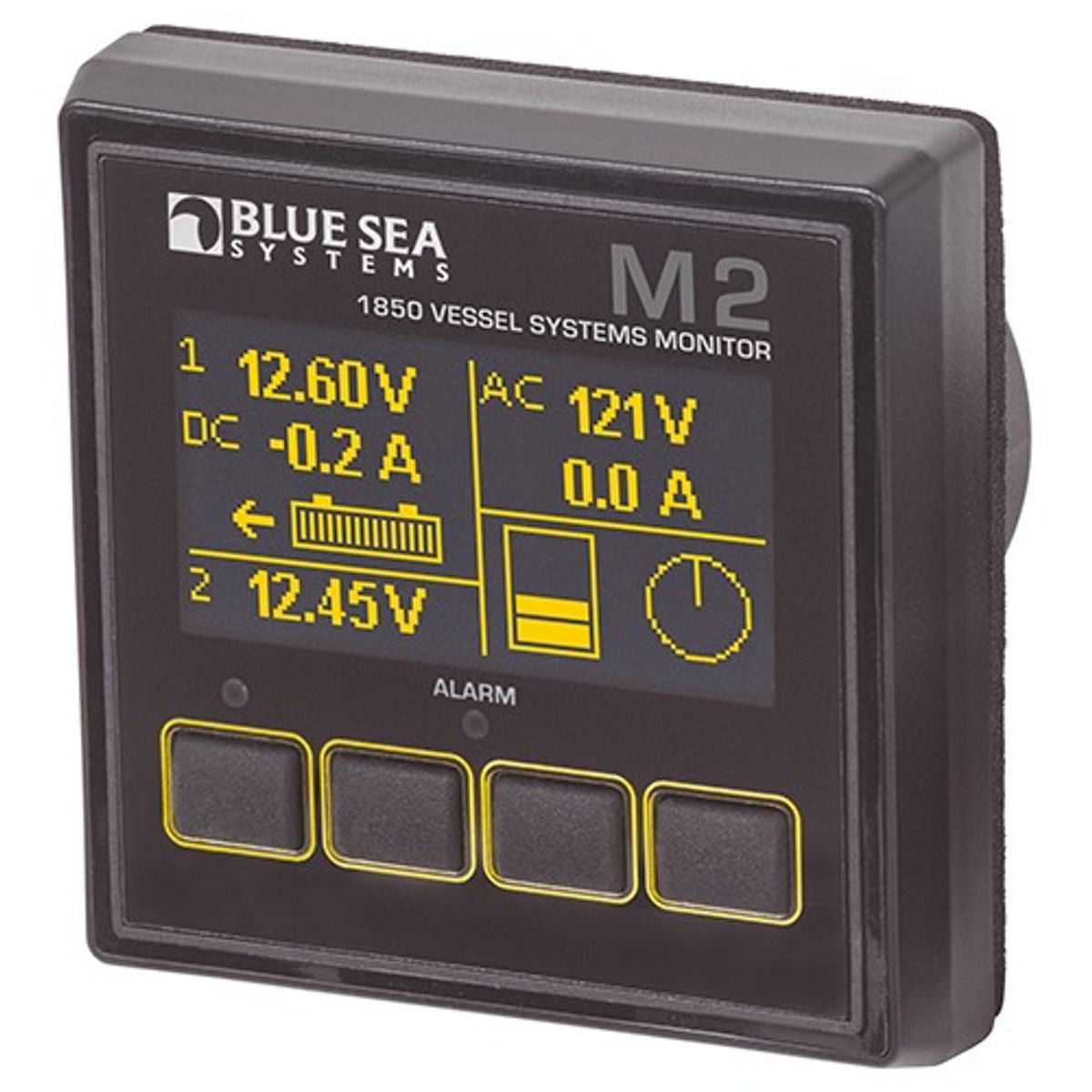

Blue Sea M2 Vessel Systems Monitor VSM

Performs comprehensive monitoring of four critical systems in one compact organic LED digital monitor DC System Monitoring (up to two batteries) One input monitors the DC voltage, state-of-charge, current for one battery bank and another input monitors the voltage of an additional battery bank. Alarms include high and low voltage, high current, and low battery. AC System Monitoring The VSM monitors a single AC voltage, current, and frequency. Alarms include high and low voltage, high current, and high and low frequency. Bilge & Tank Monitoring The M2 VSM has two inputs that can be configured as a bilge or tank monitor. When configured as a bilge input, monitoring functions include pump active, cycle count in the last 24-hours, average cycles in a typical 24-hour period, and total cycles. High alarms can be set for both the minutes of run time in the last hour as well as the number or cycle counts in the last 24-hours. When configured as a tank input, tank status can be represented in both capacity (gallons or litres) or as a percentage of capacity. Custom tank shapes can be auto-calibrated or programmed. Both high and low level alarms can be set for all tanks. Regulatory Monitor face is IP66 - protected against powerful water jets, when installed according to instructions (see inside back cover). DC Specifications Nominal System Voltage: 12V, 24V, 36V, 48V Operating Voltage: 7-70V Minimum Current Draw: 15mA @ 12V, display off, 8mA @ 24V, display off Voltage Accuracy: +/- 1% Current Range: -500A to 500A Current Accuracy: +/- 1% AC Specifications: Nominal System Voltage: 230V @ 50Hz, (Europe) Operating Voltage: 40-300V Voltage Accuracy (RMS): +/- 1% Current Range: 0-150A Current Accuracy (RMS): +/- 2% Frequency: 40-90Hz Tank Senders Supported: 10-180 Ω VDO, 240-33 Ω Teleflex Blue Sea Systems Ultrasonic Tank Senders (sold separately)
