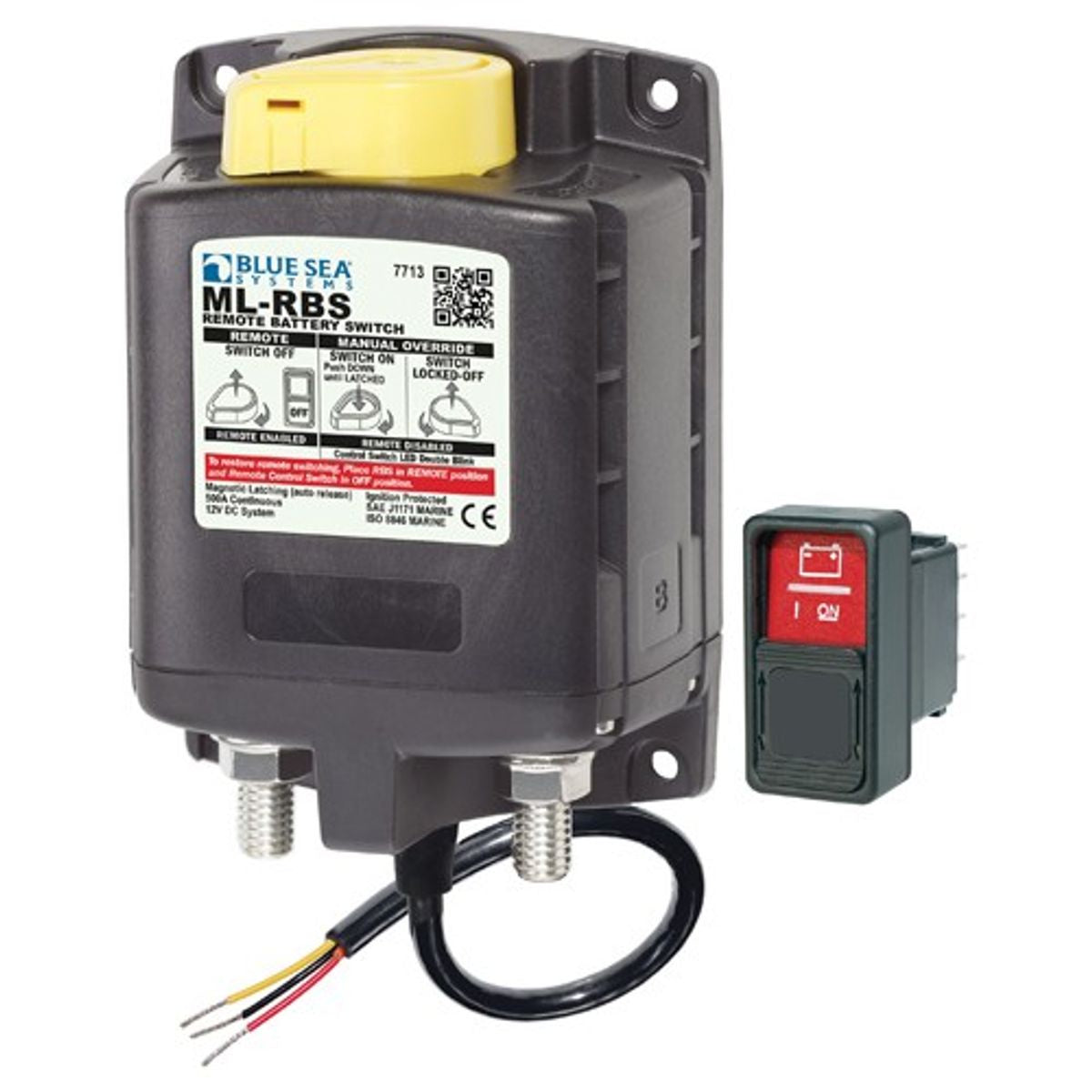

Blue Sea ML-RBS Manual Control Auto-Release 12V

Blue Sea ML-RBS Manual Control Auto-Release 12V 500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations. - Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing - LED output to remotely indicate switch state - requires optional LED - 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance - 7/8" (22mm) stud length accepts multiple cable terminals - Label recesses for circuit identification - Silver alloy contacts provide high reliability for switching live loads Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired. Control Circuit Voltage: 10.1 to 16.5V DC Control Circuit Connection: Tinned Wire Nominal Voltage: 12V DC Manual Control: Yes Coil Function: Auto-Releasing Mounting: #10 Amperage Operating Current: 8mA when OFF, 13mA when ON Amperage Operating Current when changing state: <7A (40 ms) Terminal Stud Torque: 140 in-lb (15.82 Nm) Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating 30 sec: 1450A DC Minimum Operating Temperature: -10°C Maximum Operating Temperature: +60°C Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A @ 12V DC Master Control Switch Capability: Yes Mechanical Endurance: 100,000 Cycles Switching Cycles: 100000 Terminal Ring Diameter Clearance: 29.97mm (1.18") Terminal Stud Length: 22.23mm (0.875") Terminal Stud Size: 3/8" - 16 (M10) Weight: 0.94 kg (2.07lb)
