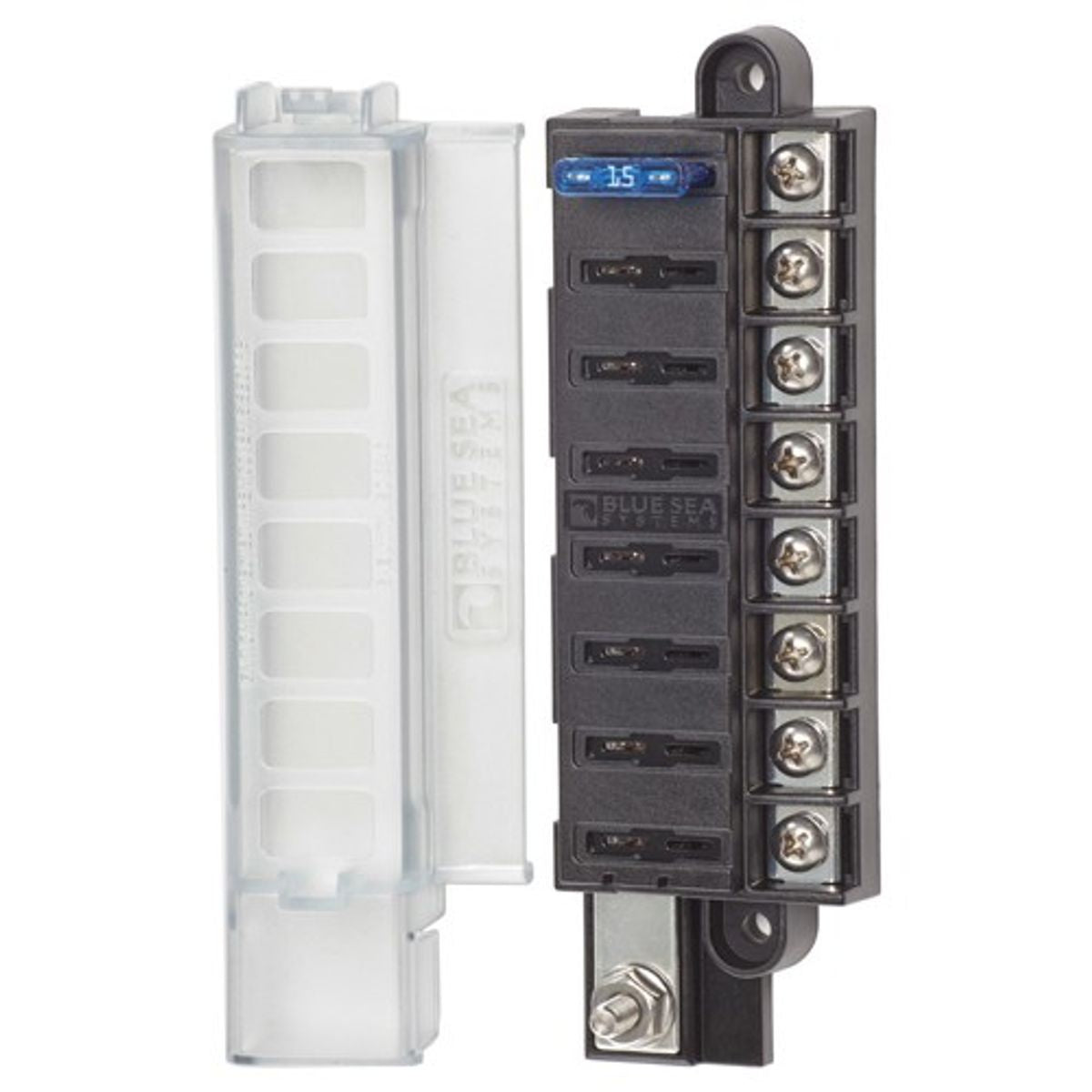

Blue Sea ST Blade Compact Fuse Block 8 Circuit

Blue Sea compact fuse block 5046 for 8 circuits, provides surface mount circuit protection for ATO and ATC fuses in a compact footprint. The fuse block is ignition protected, when the insulation cover is secure it meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment, as well as ABYC and USCG insulation requirements. The single side design allows wire entry from one side to minimise the footprint of the block. - Tin-plated copper buses and fuse clips - Accepts ring or snap fork type terminals - Includes 8 write-on circuit labels Circuits: 8 Maximum Amperage: 100A per block, 30A per circuit Maximum Voltage: 32V DC Mounting: #8 Screw (M4) Terminal Stud Torque: 24 in-lb (2.71 Nm) Screw Terminal Torque: 18 in-lb (2.03 Nm) Screw Terminal Type: #8-32 Screws with captive star lock washer Terminal Stud Size: #10-32 Weight: 0.18 kg (0.40lb) Approvals: CE, Ignition Protected, IP66, ISO 8845 Marine, SAE J1171 Marine & UKCA
