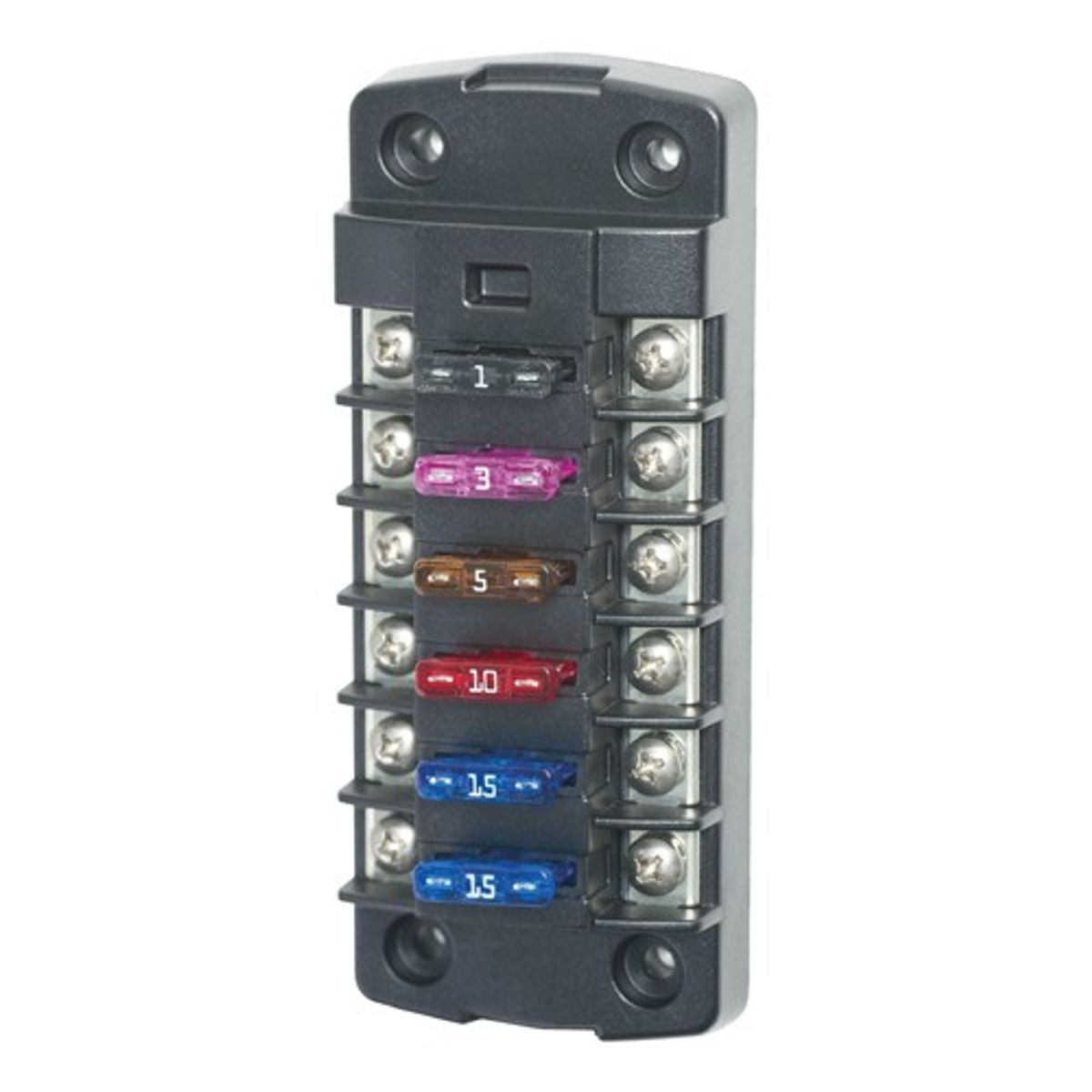

Blue Sea 5037 ST blade fuse blocks with screw terminals for 6 independent circuits. This compact ATO / ATC blade fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.
- Can be used for 24-hour circuits
- Accepts ring or snap fork terminals
- Tin-plated copper buses and fuse clips
- Fuses sold separately
Specifications:
Circuits: 6
Maximum Operating Voltage: 32V DC
Maximum Operating Amperage: 30A per circuit, 40A per jumped circuit group
Fuse Type: ATC or ATO Fuses
Screw Terminal: #8-32 Screws with Captive Star Lock washer
Screw Terminal Torque: 18 in-lb (2.03 Nm)
Mounting: #8 Screw (M4)
Weight: 0.16 kg (0.35lb)
