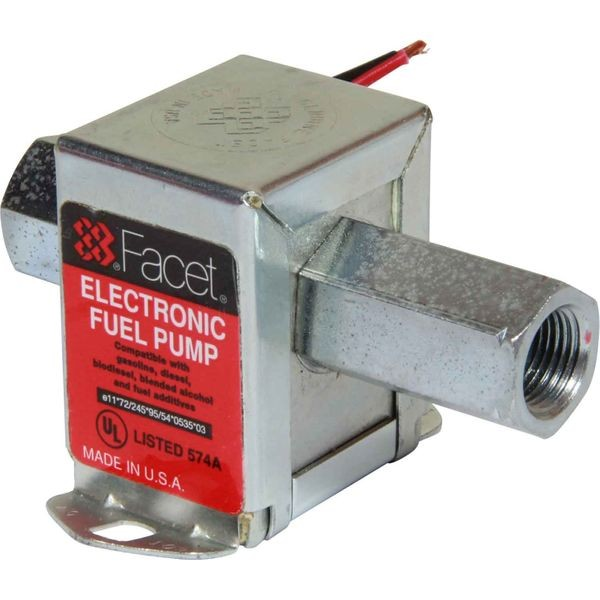

Facet Electric Fuel Pump (12V / 121 LPH / 3/8" Ports)
Facet Electric Fuel Pump (12V / 121 LPH / 3/8" Ports)
Small, compact, solid state electric fuel pump for 12 volt system.
Typical uses include: engine fuel pumps, fuel transfer pumps and fuel polishing pump.
This compact solid state fuel pump is suitable for pumping diesel, petrol (gasoline), biodiesel, blended alcohol fuels and fuel additives. The solid state design of this fuel pump enables it to be small, efficient and incredibly reliable. There are no electrical contacts and no bearings or diaphragm to wear out in this fuel pump. Installation is simple (two fixing bolts and two pipe connections).
For best results, mount the fuel pump close to the fluid or fuel tank and below the liquid level.
Positive lead - plain (no terminal).
Negative lead - 0.25" ring terminal.
| Application | Pumping Diesel, Petrol, Biodiesel, Blended Alcohol Fuels & Additives |
| Flow Rate Description | 121 LPH (26 Imperial GPH / 32 US GPH) at Zero head |
| Height Description | 60mm (2.4") |
| Length | 100mm (including ports), Feet: 82mm |
| Operating Temperature | -40°C to 82°C (-40°F to 180°F) |
| Voltage Description | 12V DC |
| Width | 47mm |
| Working Pressure | Max 7 PSI (0.48 bar), Min 4 PSI (0.27 bar) |
| Brand | ASAP Electrical |
| Hole Centres | 64mm |
| Replaces | 306553 |
| Self Primes up to | 0.6 Metres (1.9 Feet) |
| Inlet Outlet | 3/8" -18 NPTF Female |
| Amps Description | 1.6A |
