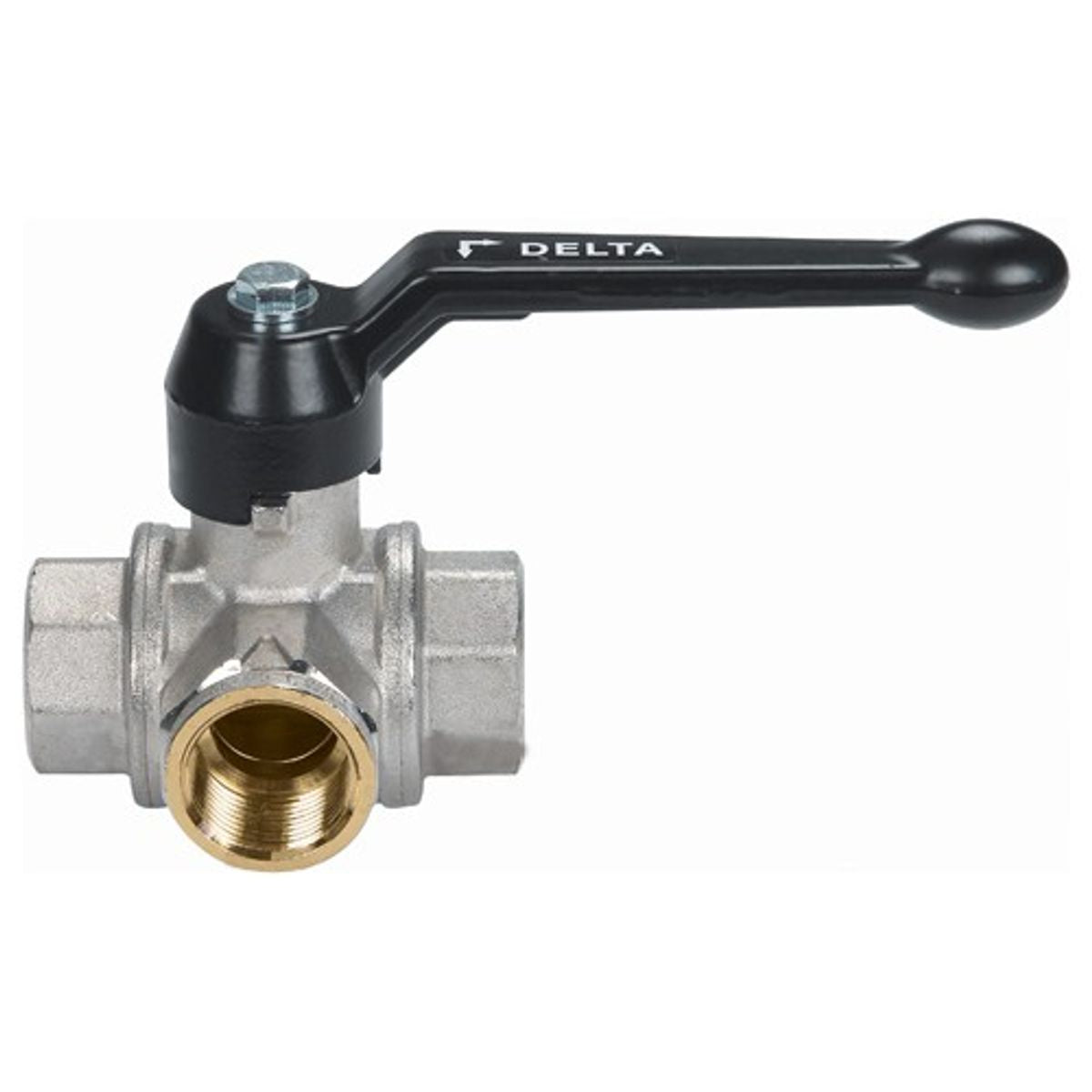

The Delta L-port ball valve 1/4" is made in Nickel plated Brass (CW617N) with chromed brass ball (CW617N), PTFE seats and Aluminium alloy lever handle.
'L' Port allows two of three ports open only i.e. for diverting
10 Bar maximum pressure limit
For fluids from -10°C to +100°C
Full bore
Dimension G = Female Taper Thread ISO 7/1 (UNI EN 10226)
The direction of the flow is shown by the marking on the lever.
Position A: from position B the handle is operated by a Clockwise quarter turn.
Position B: from position A the handle is operated by a Anticlockwise quarter turn.
