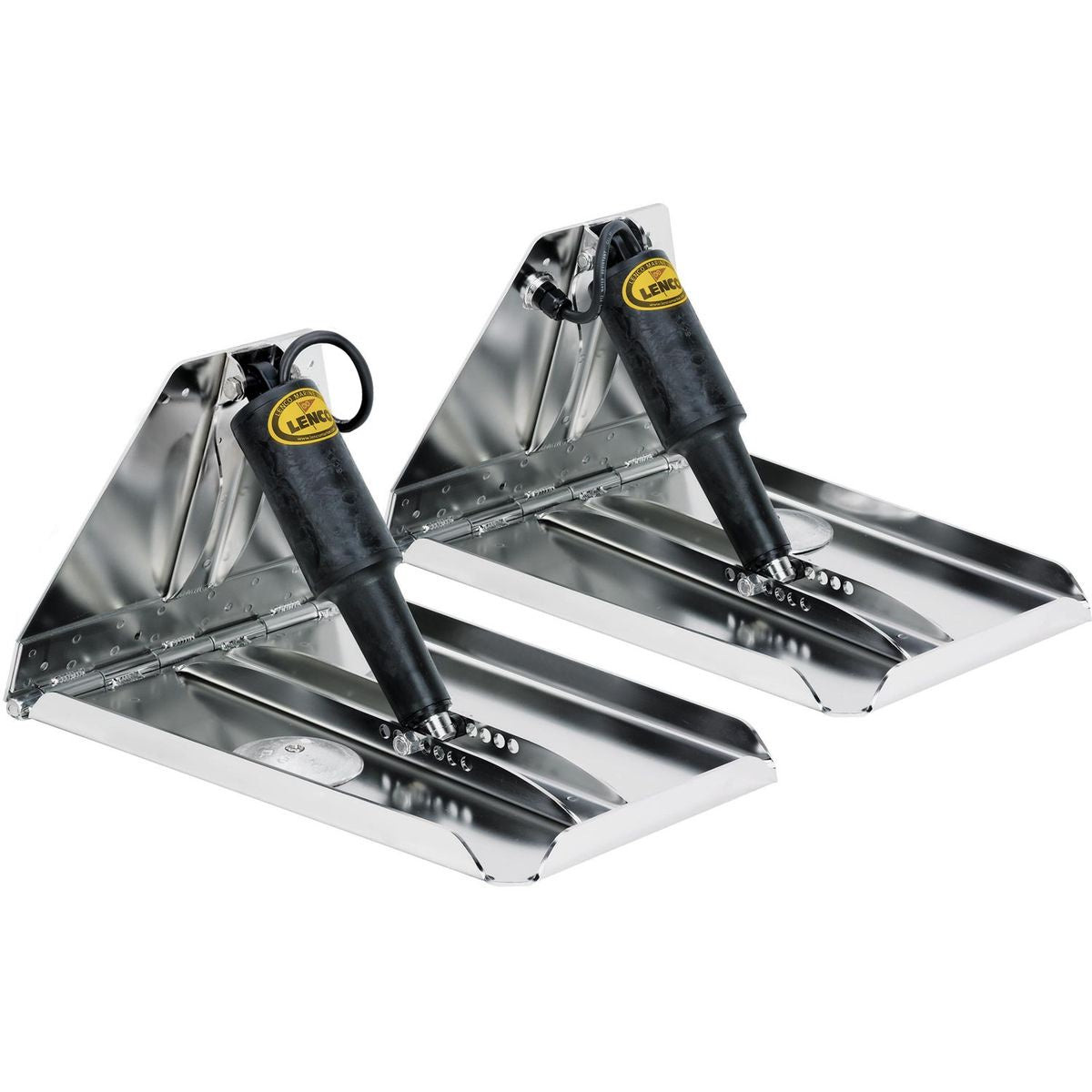

Lenco 17" x 12" XD Performance Trim Tab Kit (12V / Polished / Single)

Lenco 15045-101 trim tab kit is the only single actuator Extreme Duty design offered. This trim tab is similar to Lenco's Heavy Duty Performance series with a thicker, stronger blade for those boaters who run hard in extreme conditions. Boat lengths 20' (6.1 m) to 40' (12.2 m). Blades are constructed of Electro-Polished 10 gauge (3.4 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 3/8" (9.5 mm) diameter hinge pin. Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8" (9.5 mm) stainless steel mounting bolts. 3.75" (9.5 cm) sacrificial anodes installed. Lenco trim tab kit contents: - 2x 10-gauge stainless steel Electro-Polished blades - 2x 15056-001 XD Extreme Duty actuators with 6' (1.8 m) leads & Deutsch connectors - Lenco owner's/installation manual Note: Boat-mounting hardware to be supplied by the customer. Actuator extension harnesses are available to be purchased separately (2 required).
