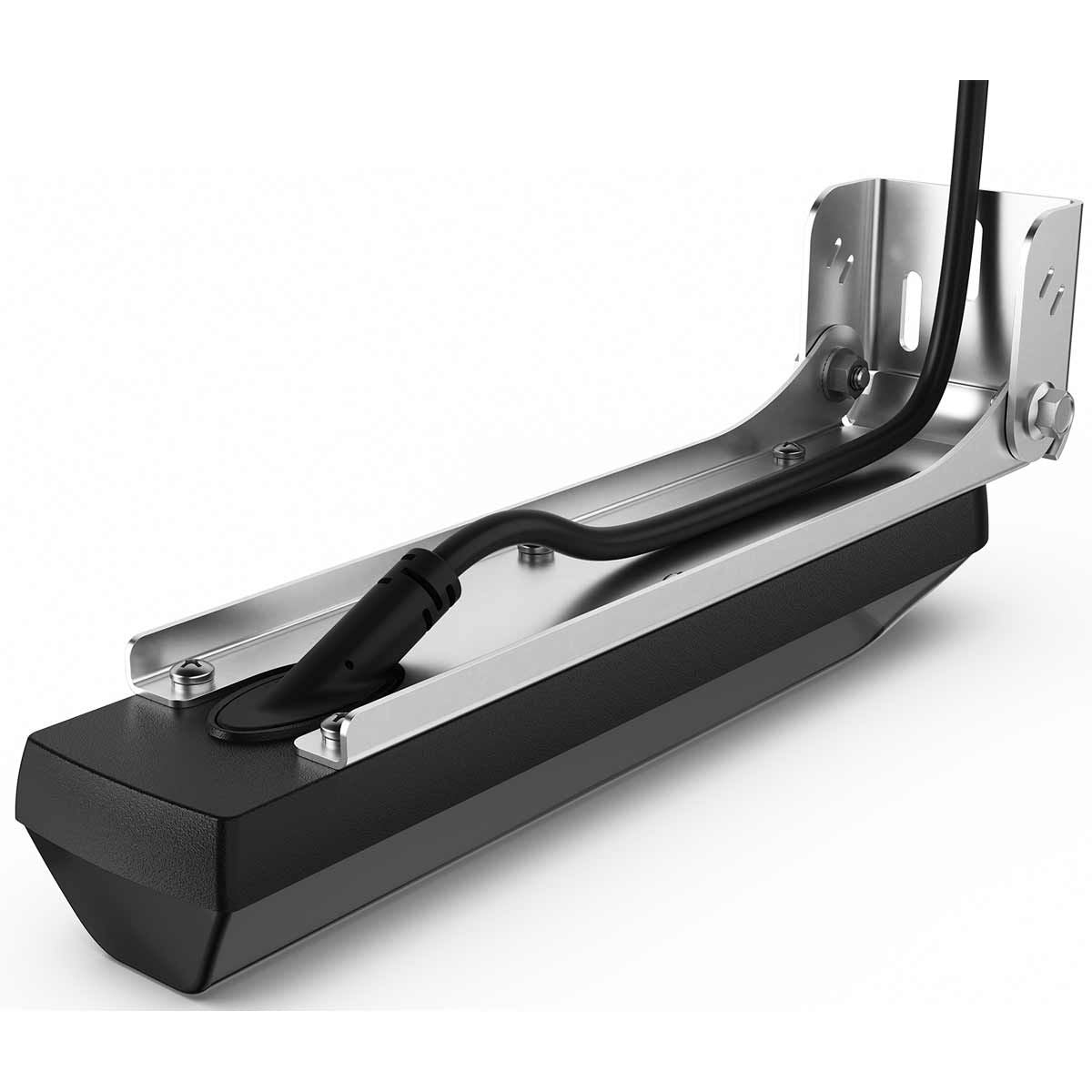

Lowrance Active Imaging HD 3-in-1 Transducer

See the Difference - Our clearest sonar ever, Active Imaging HD delivers the highest-definition views of Lowrance CHIRP, SideScan and DownScan Imaging. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weed beds, ditches, drop-offs and more. FishReveal - Get the best of Lowrance CHIRP sonar and DownScan Imaging on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognise fish from structure and cover on high-detailed DownScan images. Designed for Clarity - The Active Imaging HD transducer not only delivers three key sonar technologies – Lowrance CHIRP, SideScan and DownScan Imaging – in one convenient package, but also features a new transducer design that boosts signal clarity. Electrical: Humidity: 60°C, 95% relative humidity (RH) for 18 hours Environment: Shock and Vibration: 100,000 cycles of 20 G Radar: Frequencies: CHIRP: High CHIRP Medium CHIRP Broadband: 83 kHz200 kHz, Active Imaging HD: SideScan: Low CHIRP: 455 kHz (445 kHz - 495 kHz) High CHIRP: 1075 kHz (1065 kHz - 1115 kHz), DownScan: Low CHIRP: 700 kHz (690 kHz - 740 kHz) High CHIRP: 1200 kHz (1190 kHz - 1240 kHz) Max Depth: 2D Sonar: Broadband/CHIRP: 200 kHz/High CHIRP - 500' (152.4m) 83 kHz/Medium CHIRP - 1000' (304.8m), SideScan: High Frequency: 150' (45.72m) Low Frequency: 300' (91.44m), DownScan: High Frequency: 150' (45.72m) Low Frequency: 300' (91.44m) Interface: Direct Connect to: HDS Pro S3100 Ethernet to: HDS Live & Elite FS Requires S3100 Module
