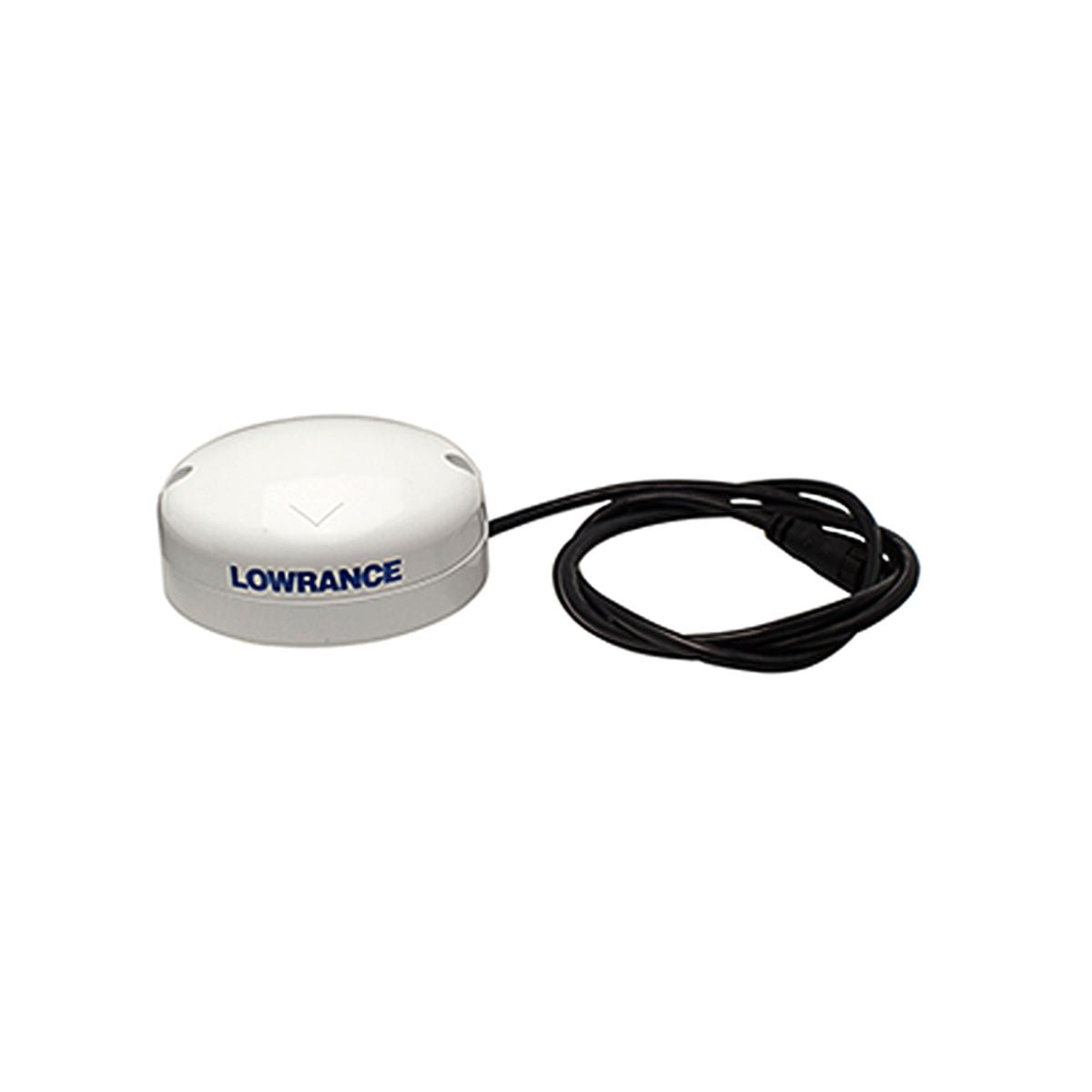

Lowrance Point-1 GPS/HDG Antenna with Built-In Compass

The Lowrance Point-1 is a position and heading device built to provide extremely accurate and rapid boat position and speed updates. Unlike other position-only antennas, the Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay. It easily connects to any HDS Gen2, HDS Gen2 Touch or Elite-7 display or any NMEA 2000 network. The Point-1 is fully waterproof and can be pole or surface mounted on any boat. Product contents: • Lowrance Point-1 (000-11047-002) • N2K-T-RD Network T-Connector (000-0119-79) • N2KEXT-15RD 4.5-metre Cable Micro-C (000-0119-86) Connectivity • N2K PGNs: 126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257 • NMEA 2000: 1 x NMEA 2000 Micro-C port, 2 LEN GPS • Correction: DGPS, WAAS, EGNOS, GLOANASS, MSAS, Galileo • GPS receiver channels: 32 Channels • Position accuracy: 3m (9.8 ft) • Time to First Fix : 3s (Cold Start 50s) • Update rate: Up to 10 Hz (1,5,10) Heading Sensor • Accuracy: +/- 3º Heading, +/- 1º Roll/Pitch @ 30º • Data available: Magnetic, Heading, Rate of Turn, Heel Angle, Trim Angle • Data protocol: NMEA 2000 • Type: Solid state MFD • Compass safe distance - Metric, imperial: 0.5m (20") • Dimensions (Diameter x H): 95 x 38 mm (3.54" x 1.50")
