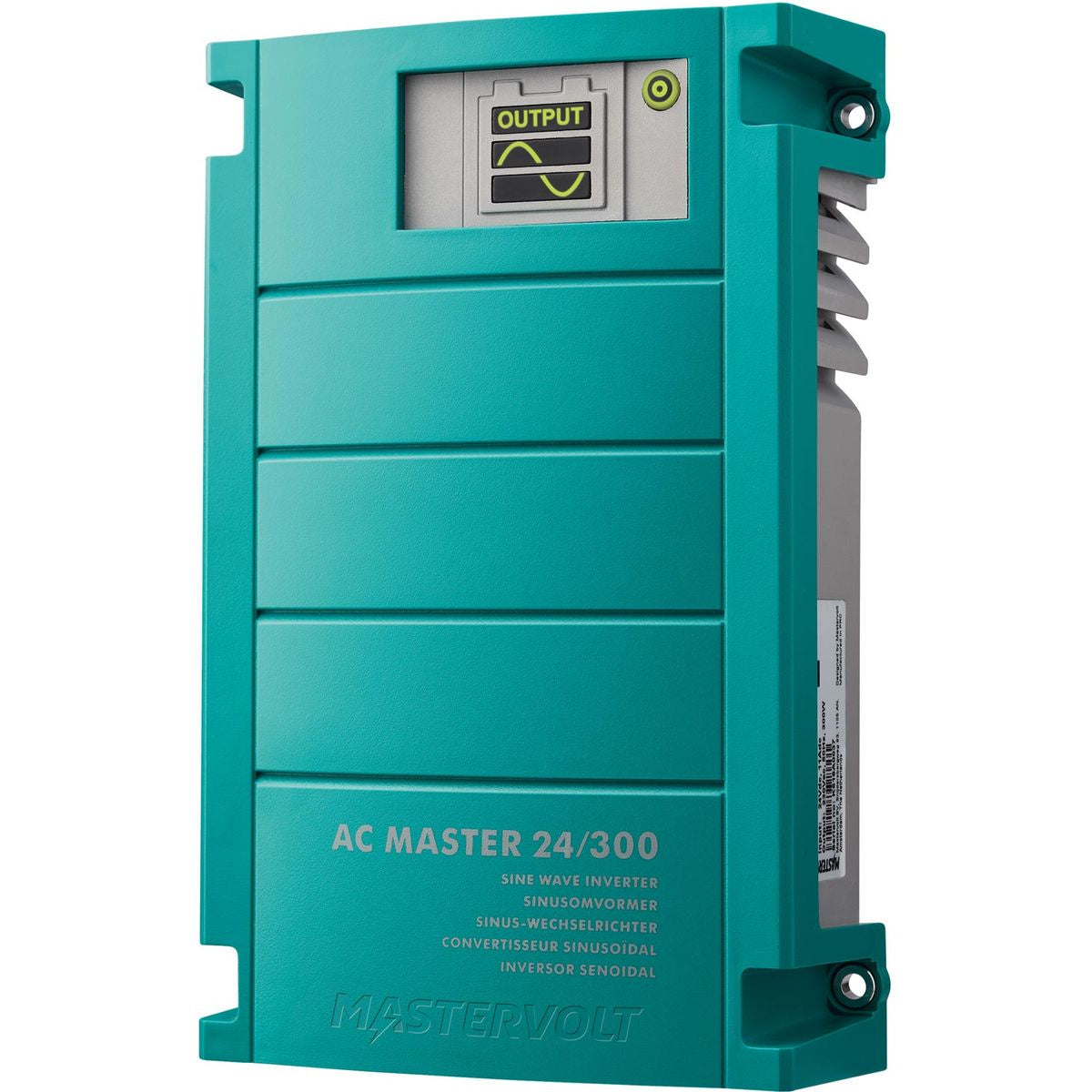

Mastervolt AC Master Inverter (24V / 300W)

The Mastervolt AC Master power inverter produces a pure sine wave AC (Alternating Current) output from a DC (Direct Current) input from your boats battery bank. Because of the pure sine wave output, it is safe and reliable and prevents damage to the equipment it is connected to. The inverter is easy to install and features built in protection against over-temperature, overload, short circuit and high or low battery voltage. The power inverter is robustly built and delivers the full output even in demanding conditions. The high frequency technology used eliminates noise typically associated with power inverters, such as buzzing or humming. It also features an automatic power saving mode, meaning a longer run time and less strain on your batteries. General specifications Output voltage: 230 V - 50 Hz (± 0.1%) Output waveform: true sine Nominal battery voltage: 24 V Recommended battery capacity: ≥ 30 Ah Continuous power at 25 °C / 77 °F, cos phi 1: 300 W Continuous power at 40 °C / 104 °F, cos phi 1: 250 W Peak load (5 s): 600 W AC connection: universal Galvanisedanic isolation: yes Efficiency: 91 % Display/read-out: LED display Alarms: 4 alarm modes Dimensions, hxwxd: 210 x 130 x 60mm (8.3 x 5.1 x 2.4 inch) Weight: 1.16 kg (2.6 lb) Compliance: CE, E-mark, ABYC A-31 Technical specifications Technology: high frequency, input & output fully isolated Low battery voltage, switches off at: 20 V, ± 0.5 V Low battery voltage, switches on at: 22 V, ± 0.5 V High battery voltage, switches off at: 32 V, ± 0.5 V High battery voltage, switches on at: 29 V, ± 0.5 V Max. ripple on DC (battery): 10 % RMS Input current (nominal load): 11 A No-load power consumption (ON mode): 0.29 A - 7 W No-load power consumption (energy saving mode): 0.16 A - 4 W Minimal DC fuse (slow blow): 40 A Minimal cable size: 1.5 metre DC cable delivered as standard Harmonic distortion typical: < 6 % Cos phi: all power factors allowed Temperature range (ambient temp.): -20 °C to 40 °C, derating > 40 °C (-4 °F to 104 °F) Cooling: natural/forced Switch off at (auto recover after cooling down): 50 °C (122 °F) Protection degree: IP23, vertical wall mounting Protections: over temperature, over load, short circuit, high/low battery voltage MasterBus compatible: no
