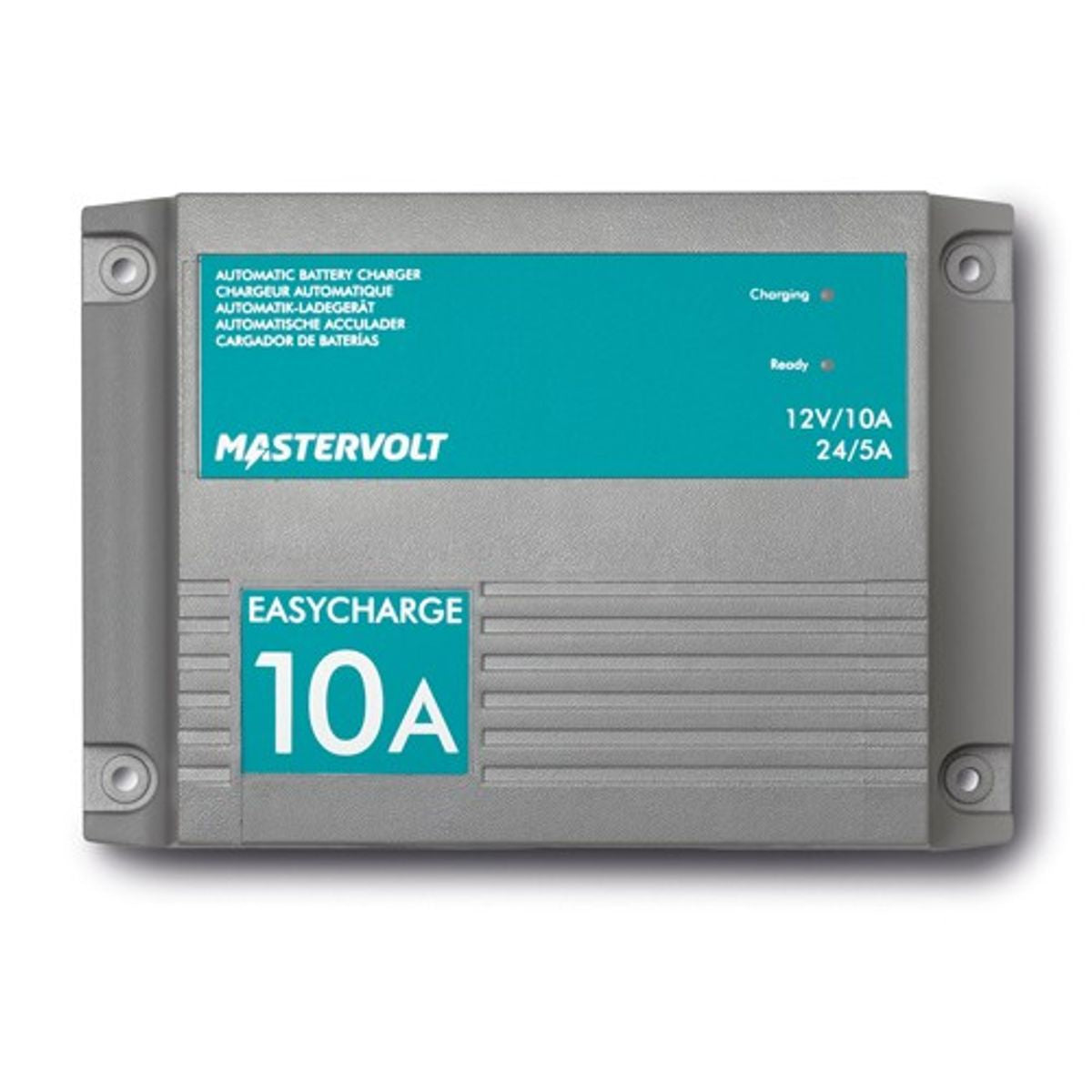

Mastervolt EasyCharge Fixed Battery Charger (12V / 10A)

The Mastervolt EasyCharge 43321002 is a fixed battery charger designed to be highly efficient and simple to use, accepting a wide range of voltage inputs to be suitable for round the world use. It is built to IP68 waterproofing standards, and is fully salt, shock and vibration tested. The charger is fully sealed in an epoxy-filled, non corrosive enclosure and the output is completely isolated. The charger can be used in series or parallel connections to provide higher voltage or current, and can charge wet, AGM and gel batteries. General Specifications Total charge current: 10 A at 12 V, 5 A at 24 V Recommended battery capacity: charge (based on 50 % discharged battery): to 120 Ah Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz AC connection: 1.2 m (4 ft) cable + UK plug DC connection: ring terminals Dimensions, hxwxd: 127 x 178 x 51mm (5 x 7 x 2 inch) Weight: 2.8 kg (6.2 lb) Approvals: CE, ABYC Technical Specifications Charge characteristic: IUoUo, automatic 3-step+ for Gel/AGM/flooded Temperature range (ambient temp.): -20 °C to 40 °C (-4 °F to 104 °F) Protection degree: IP68 Protections: spark free, short circuit, reverse polarity, over-voltage, current limited, over-temperature MasterBus compatible: no
