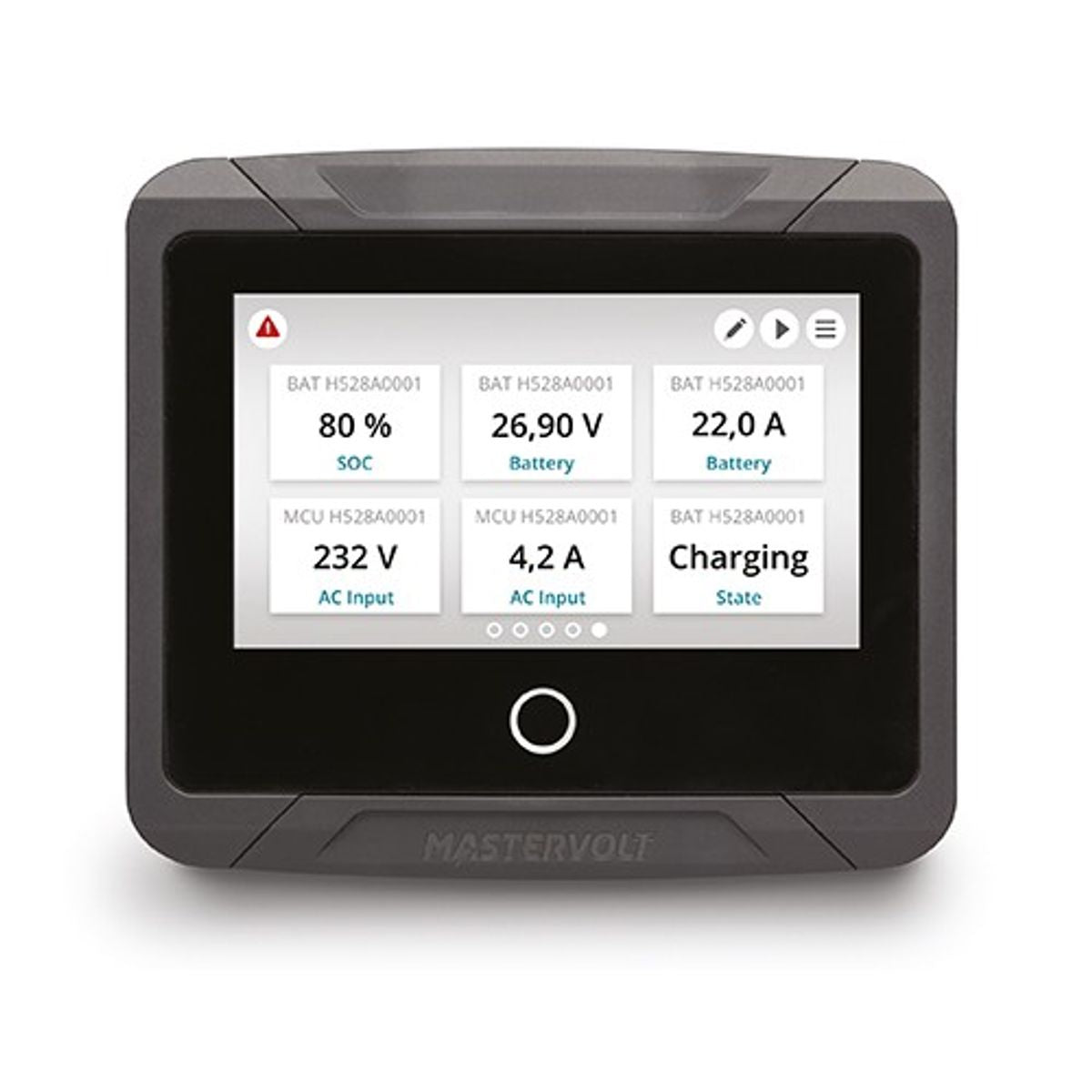

Mastervolt EasyView 5 Touch Screen System Monitor

The Mastervolt EasyView 5 control panel provides information about your electrical system and devices in one clear and easy colour display. It is waterproof and is designed to be clearly readable even in bright daylight, and also features a multi language menu so it is easy to operate. You can customize your favourites pages to show the information you want to keep an eye on. The touch screen system allows you to operate and adjust settings on your integrated Mastervolt devices, which can all be connected up via a MasterBus interface. The panel allows customizable alerts to be set up, which will sound an audible buzzer and display an error on the display. General specifications Power supply: MasterBus powered, or 12/24 V input (9 - 32 V) Resolution: 480 x 272 pixels Colour depth: 16 bits Display/read-out: 4.3 inch high contrast display with capacitive touch control Languages on display: ENG, NL, DE, SP, IT, FRA, FIN, SWE, DEN, NOR Mounting: panel mounting, flush mounting, MasterView Easy retrofit Alarms: buzzer integrated Dimensions, hxwxd: 113 x 127 x 43 mm (4.4 x 5.0 x 1.7 inch) Weight: 0.315 kg (0.7 lb) Delivered with: UV protection cover, wall mount casing, MasterBus cable Technical specifications MasterBus connection: yes Power consumption: < 160 mW (idle mode) Connections: 2x MasterBus, USB, 12/24 V Temperature range (ambient temp.): -20 °C to 70 °C (-4 °F to 158 °F) Protection degree: IP67; waterproof front
