Mastervolt GMDSS Remote Panel for Mass Battery Chargers

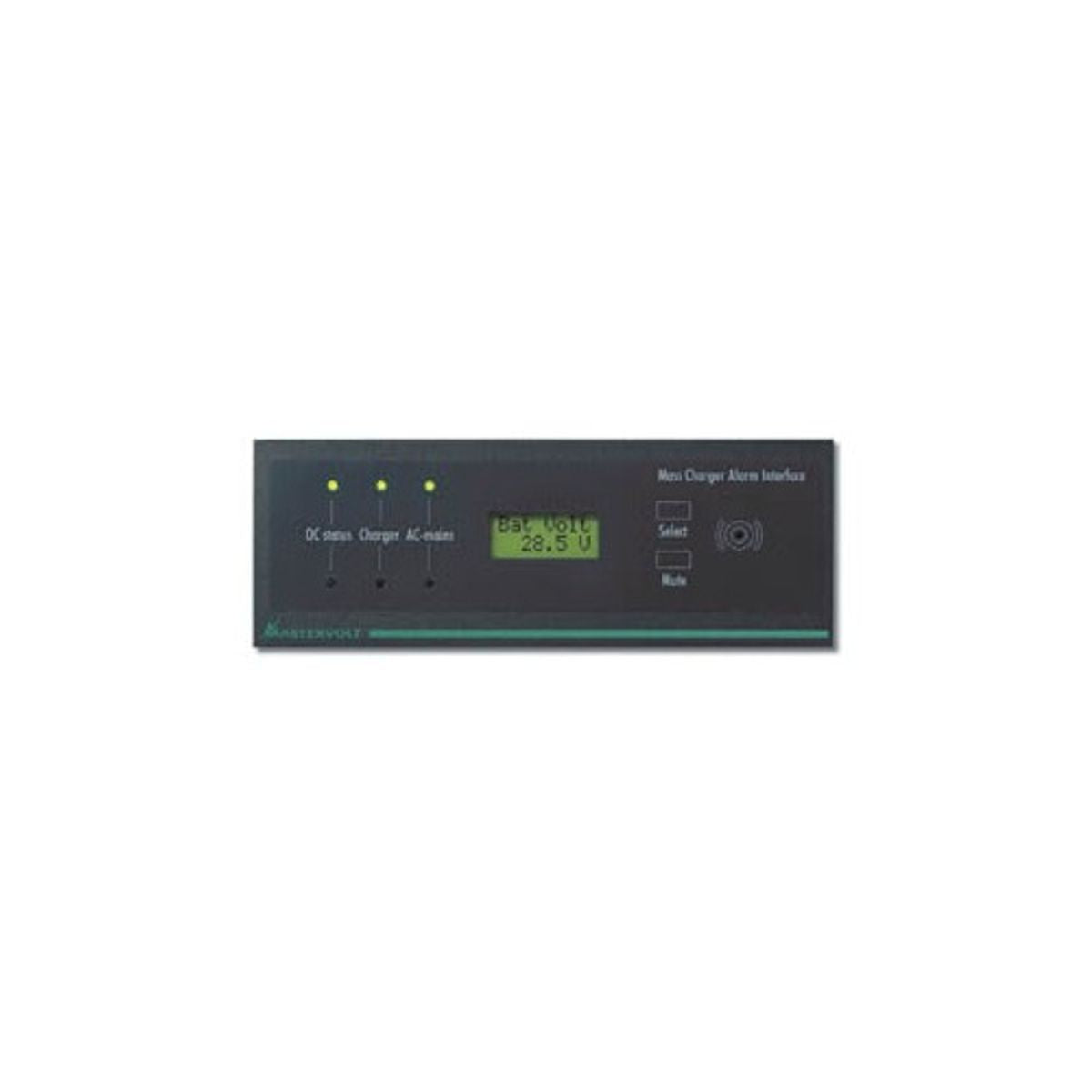

Remote monitoring panel suitable for use with all Mastervolt Mass battery chargers. Featuring a digital screen that displays battery voltage and current, as well as LED indicator lights to monitor system health and an alarm interface feature. The Mastervolt Mass series of battery chargers are designed to be GMDSS (Global Maritime Distress and Safety System) compatible so you can comply with SOLAS (Safety Of Life At Sea) guidelines, and this remote panel supports that. General specifications Function: monitoring of the status of the battery and battery charger (12/24 V DC) Supply voltage: 8-32 V DC Safe compass distance: standard 1 meter; steering: 0.3 mm Display/read-out: LCD display and status LED’s for DC voltage alarm, charger alarm and AC mains alarm Current: 110 mA (12 V) / 65 mA (24 V), normal operation mode without activated relays. Current accuracy: ± 2 A (< 45 A), ± 4 A (> 45 A) Alarms: potential-free switch over contacts for DC voltage alarm, charger alarm and AC mains alarm. Max. switching current: 1 A Dimensions: 180 x 65 x 40 mm, cut-out: 168 x 53 mm Dimensions shunt, hxwxd: M8, 84 x 44 x 44 mm (0.0 x 1.7 x 1.7 inch) Weight: excl. shunt: 400 gr, incl. shunt: 1 kg Delivered with: interface, shunt, user’s manual Technical specifications Voltage range: 0 - 62.7 V DC (0.1 V resolution); a 12 V or 24 V system is detected automatically V Voltage accuracy: ± 0.2 V (12 V), ± 0.4V (24 V) Shunt specification: 500 Amp / 50 mV (included with the delivery) Current measurement range: -500 … 500 A
