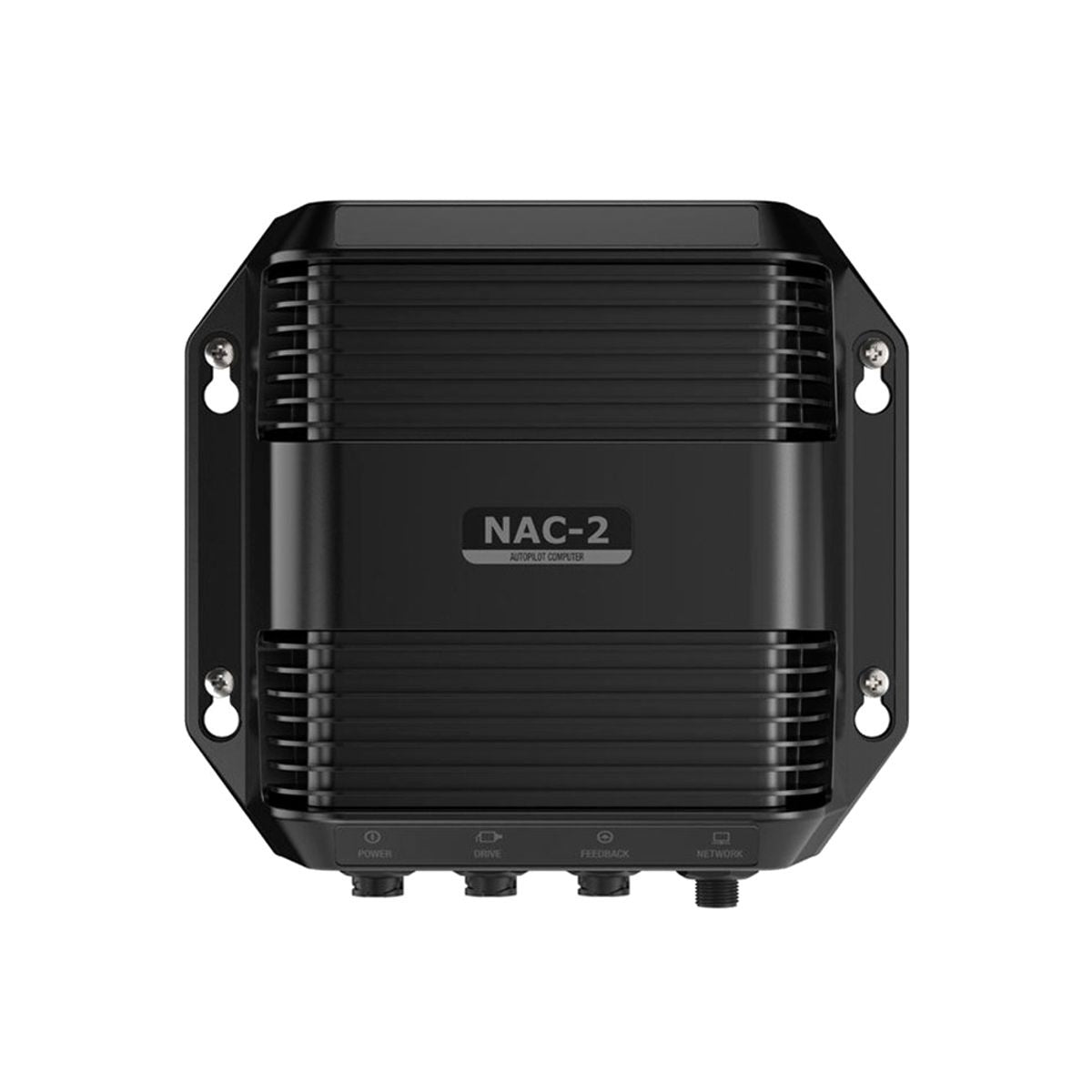

Navico NAC-2 Autopilot Core Pack - Incl. Computer, Precision-9, RF-25N

This NAC-2 Autopilot Core Pack is made up of the low-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit. The pack is designed to run small hydraulic drives and mechanical drives for vessels up to 10 meters (33 feet) in length. The NAC-2 system’s control algorithms are designed to helm a yacht across a range of weather conditions and sea-states. The system contains the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 is designed for boats up to 10 metres (33 feet) in length and is also suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (16 Amps peak). NAC-2 features: - B&G Reflex sailing algorithms - Plug and play installation - 12/24V input 8A continuous output, 12A peak - Solenoid output capable - 3A clutch output - Optional Auto/Standby switch The Precision-9 compact compass is easy to install and provides accurate heading and rate-of-turn information to B&G, Simrad and Lowrance autopilot, radar and navigation systems over an NMEA 2000® connection. Precision-9 features - Heading, Rate Of Turn (ROT), pitch and roll output over NMEA 2000® - Accurate and reliable solid-state sensor technology - Heading accuracy of ±2° after calibration - Easily adjustable mounting bracket allows bulkhead or up-mast installation - IPX7 waterproof for external up-mast mounting on steel hulled vessels - Simple installation with a single NMEA 2000® connection The RF25 is a medium duty rudder feedback unit with a SimNet interface. It attaches directly to Simnet systems for straight-forward installation. RF25 features - +/- 120 Degree Measurement - Precise and Accurate; +/- 0.5 Deg - SimNet Connectivity - 5.5m attached SimNet Cable Minimum product requirements: Requires a hydraulic steering pump or mechanical drive unit, and a compatible autopilot controller or networked multifunction display.
