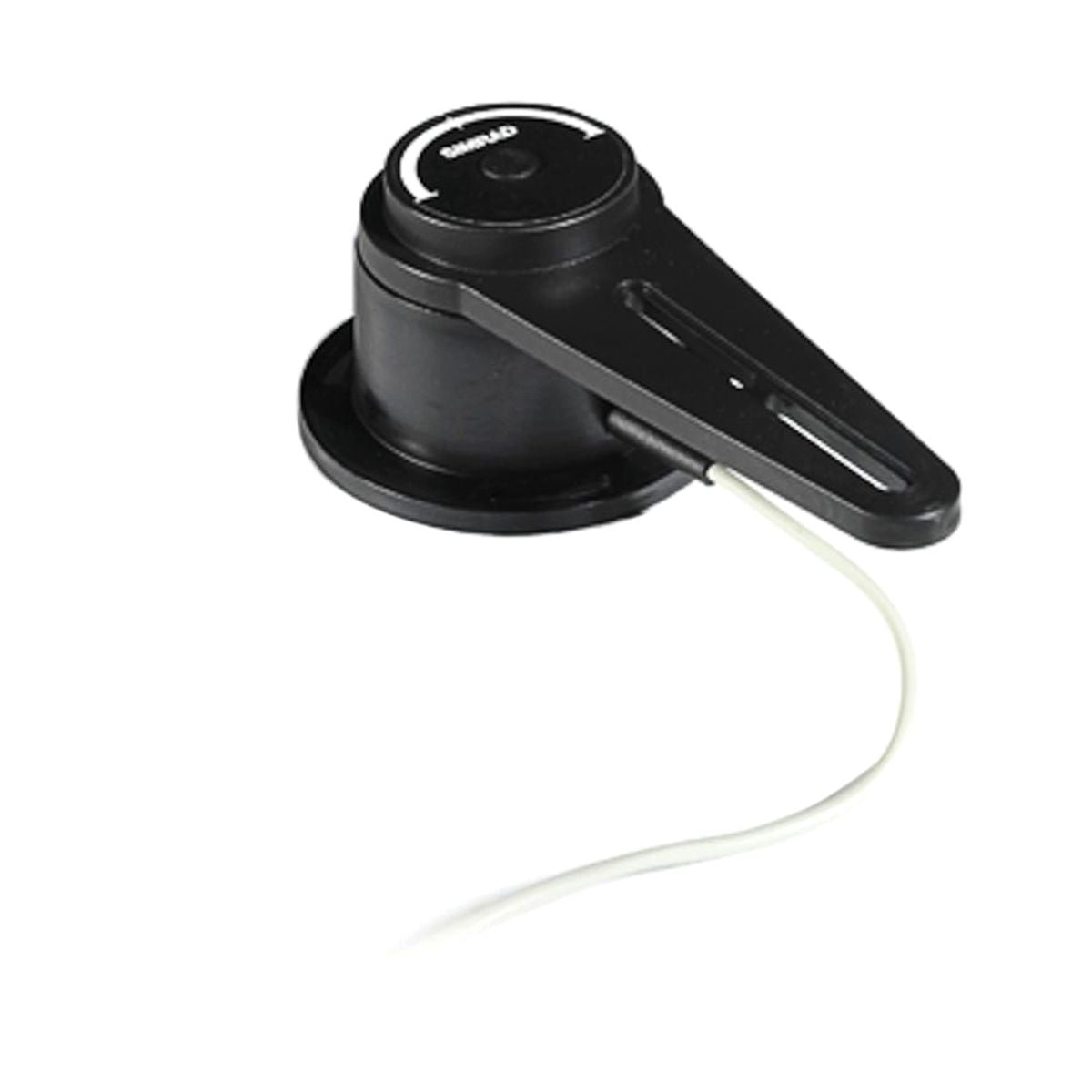

Navico RF25N Rudder Feedback Unit - NMEA2000

The RF25N Rudder Feedback Unit with transmission link and five metre NMEA2000 Micro-C cable, is typically used on boats with inboard engines, on larger vessels, and in special applications where Virtual Rudder Feedback may not be suitable. It connects to a rudder via a mechanical linkage and continuously reports actual rudder position to an autopilot computer - allowing the Simrad Continuum steering algorithm to make the best-informed steering decisions possible. The RF25N connects directly to a boat’s NMEA 2000® network, simplifying the cabling required for installation. It can be horizontally, vertically or upside-down mounted. Specs: • Material: Arnite T06 200 PBT • Safe distance to compass: 1.0m (3.1 ft) • Mounting: Horizontal, vertical, or upside down • Supply and interface: 8-16V via Micro-C • Power consumption: 0.4W • Network load factor (NL): 1 • Moro-C ports (input/output): 1 • Cable supplied: 5m (16ft) Micro-C cable with connector • Rudder angle: ±120 degrees • Output signal: NMEA2000 PGN127245 • Accuracy: ±0.25° within ±5°, otherwise ±0.5° • Repeatability: ±0.1° • NMEA compliant • Transmitter link: Stainless 345mm (13.6") with 2 ball joints. NOTE: Ball joint stud for rudder arm requires 4.2mm diameter hole and 5mm tap.
