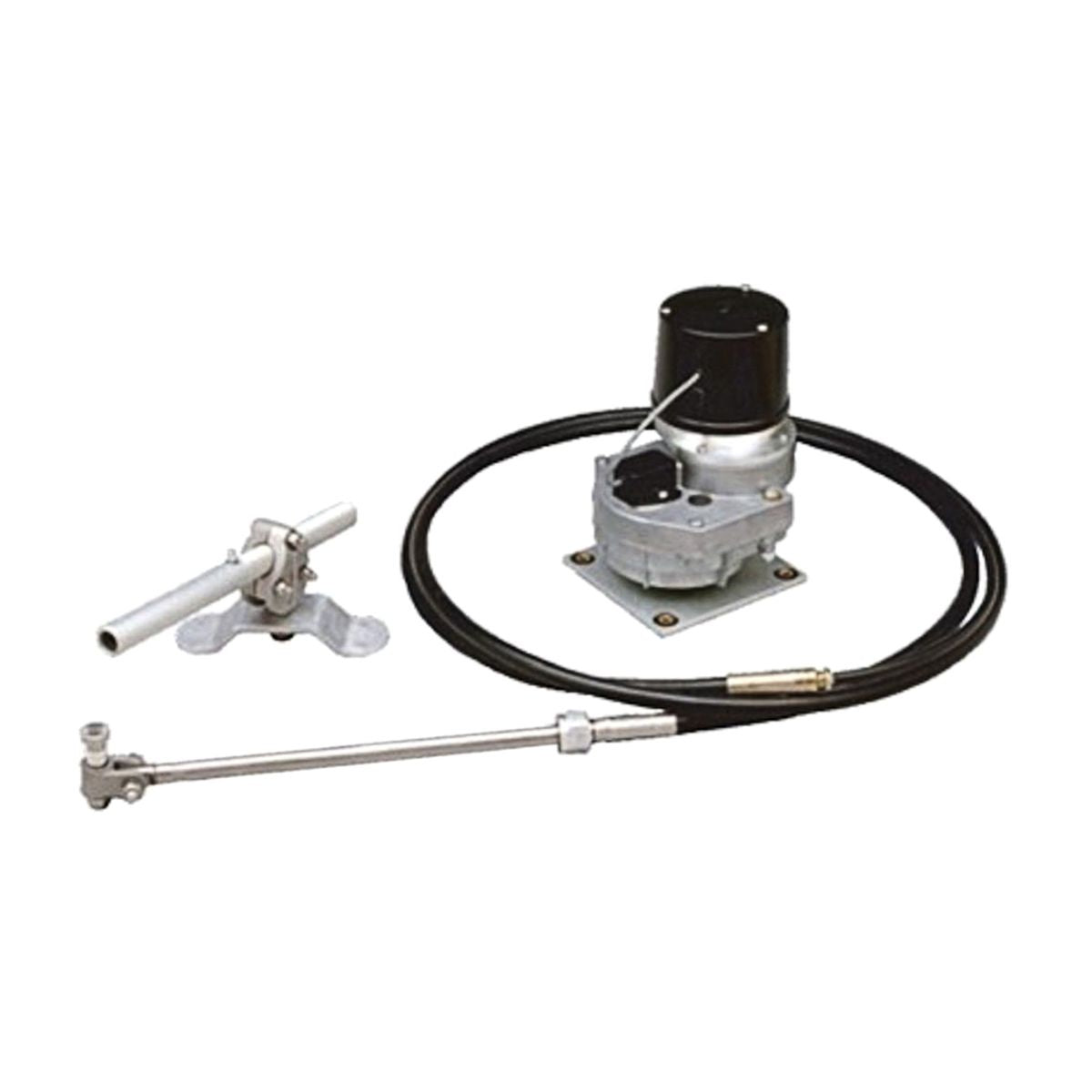

The SD10 is a mechanical drive unit for NAC-2 autopilot computers, suitable for sailboats between 25ft and 37ft in length.
The unit features built-in rudder feedback to ensure gentle and accurate steering, a six foot steering cable, an electromagnetic clutch with override function and 12V DC power supply.
- Peak power: 7 A
- Clutch circuit power: 0.85 A
- Power supply (supply voltage): 12V DC
- Max boat length: 11 metres
- Max stroke: 305
- Max torque: 450 Nm
- Peak thrust: 180kg (from cable)
- Max boat displacement: 6500 tons
