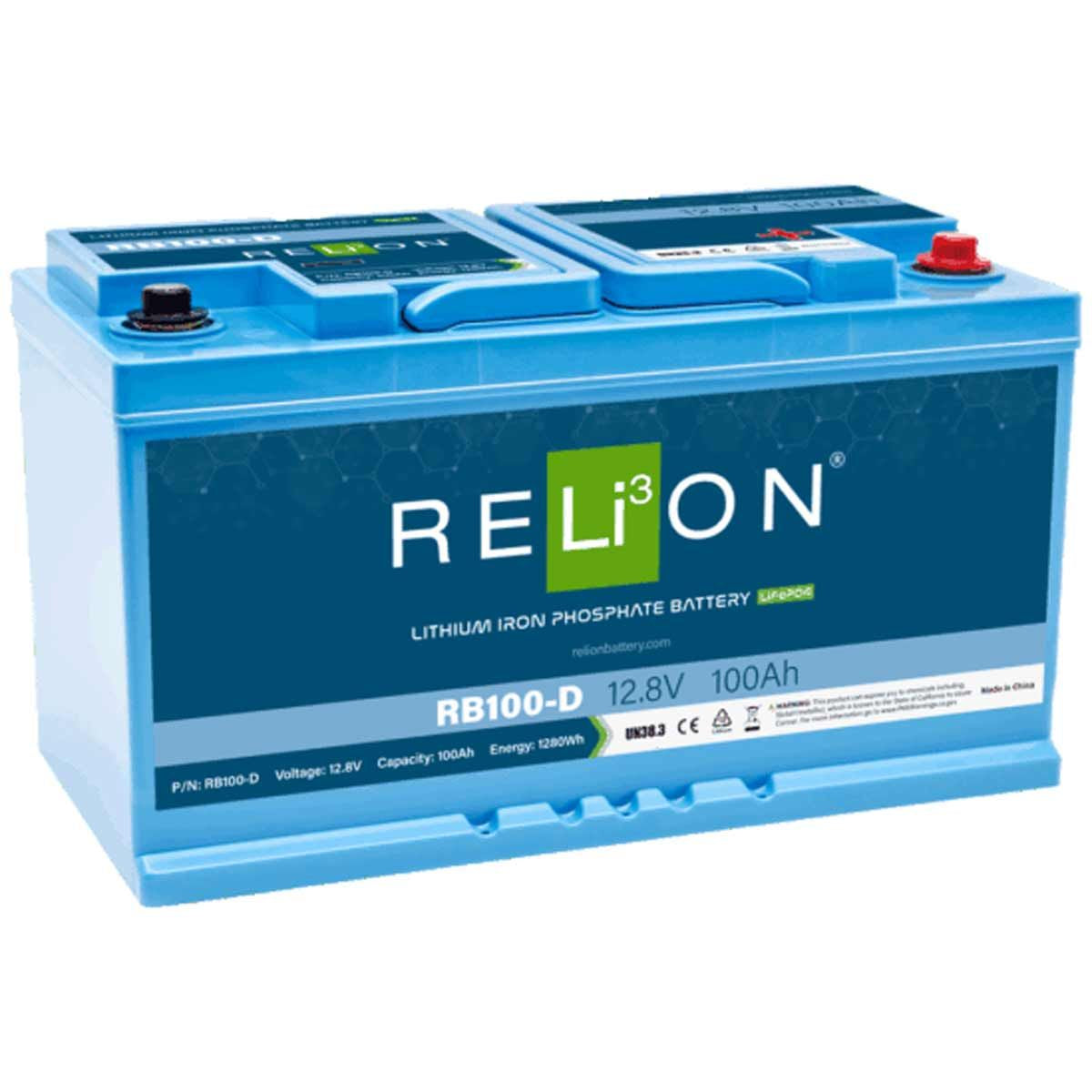

RELiON RB100-D Lifepo4 Lithium Ion Battery (12V / 100Ah / Din 4SC)

RELiON RB100-D 12V 100Ah DIN LiFePO4 Battery This 12V 100Ah lithium deep cycle battery is a safer, lighter alternative for your application. The RB100-D is a European DIN size battery. At 30 lbs, this battery is less than half the weight of the lead-acid or AGM equivalent, helping to fight against the drag caused by heavier options. It maintains consistent power and is equipped with handles for carrying, an M8 terminal type and a built-in battery management system (BMS). All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free. Applications: Marine, Recreational Vehicles, Solar, AWP, Electric Vehicles & Floor Machines Electrical Specifications Capacity @ 25A: 240 min Resistance: ≤30 mΩ @ 50% SOC Efficiency: 99% Self Discharge: <3% per Month Maximum Modules in Series: 4 Mechanical Specifications Cell Type: Cylindrical Chemistry: LiFePO4 Discharge Specifications Maximum Continuous Discharge Current: 100 A Peak Discharge Current: 200 A (7.5 s ±2.5 s) BMS Discharge Current Cut-Off: 280 A ±50 A (9 ±4 ms) Recommended Low Voltage Disconnect: 11 V BMS Discharge Voltage Cut-Off: 8 V (2.0 ±0.08 vpc) (140 ±60 ms) Reconnect Voltage: 9.2 V (2.3 ±0.1 vpc) Short Circuit Protection: 200-600 µs Charge Specifications Recommended Charge Current: 5 A - 50 A Maximum Charge Current: 100 A Charge Current 32°F to 14°F (0 to -10°C): ≤0.1 C Charge Current 14°F to -4°F (-10 to -20°C): ≤0.05 C Recommended Charge Voltage: 14.2 V - 14.6 V BMS Charge Voltage Cut-Off: 15.6 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) Reconnect Voltage: 15.2 V (3.8 ±0.05 vpc) Balancing Voltage: 14.4 V (3.6 ±0.025 vpc) Temperature Specifications Discharge Temperature: -4 to 140 °F (-20 to 60 °C) Charge Temperature: -4 to 113 °F (-20 to 45 °C) *Refer to charge currents below 32°F (0°C) Storage Temperature: 23 to 95 °F (-5 to 35 °C) BMS High Temperature Cut-Off: 176 °F (80 °C) Reconnect Temperature: 122 °F (50 °C)
