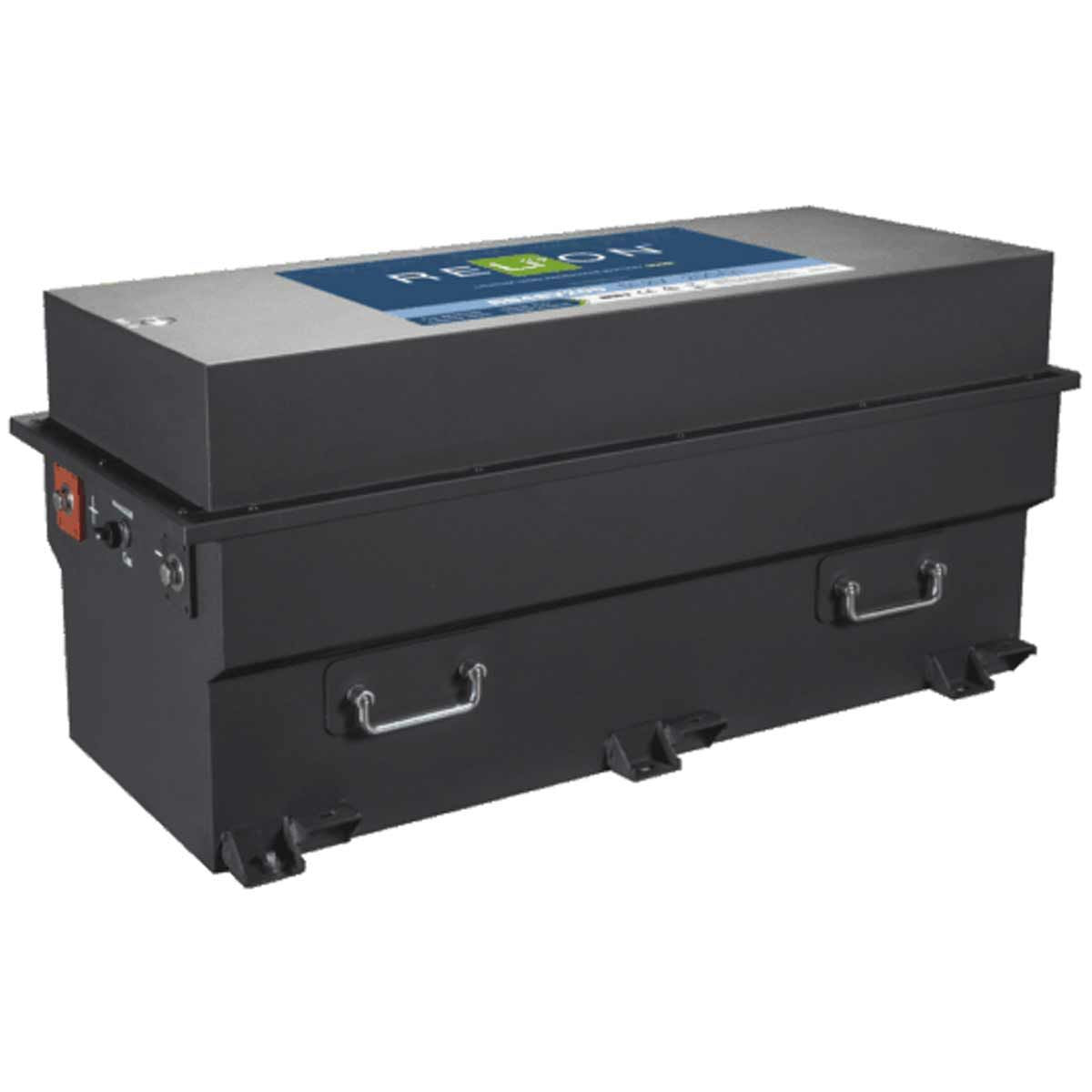

RELiON RB48V200 Lifepo4 Lithium Ion Battery (48V / 200Ah)

RELiON RB48V200 48V 200Ah LiFePO4 Battery This 48V 200Ah lithium iron phosphate battery is perfect in many different marine applications. It maintains consistent power and is equipped with an M10 terminal type and built-in overcharge protection. All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free. Applications: Marine, Solar & Electric Vehicles Electrical Specifications Capacity @ 25A: 480 min Resistance: 50 mΩ @ 50% SOC Efficiency: 99% Self Discharge: <3% per Month Maximum Modules in Series: 1 (Single Use) Mechanical Specifications Cell Type: Cylindrical Chemistry: LiFePO4 Discharge Specifications Maximum Continuous Discharge Current: 200 A Peak Discharge Current: 250 A (4 s ±1 s) BMS Discharge Current Cut-Off: 390 A (5 s) Recommended Low Voltage Disconnect: 44 V BMS Discharge Voltage Cut-Off: 40 V (2.5 ±0.1 vpc) Reconnect Voltage: 40.5 V (2.53 ±0.1 vpc) Short Circuit Protection: 5% Charge Specifications Recommended Charge Current: 10 A - 100 A Maximum Charge Current: 200 A Charge Current 32°F to 14°F (0 to -10 °C): ≤0.1 C Charge Current -4°F to 14°F (-20 to -10 °C): ≤0.05 C Recommended Charge Voltage: 56.0 V - 58.4 V BMS Charge Voltage Cut-Off: 60.8 V (3.8 ±0.025 vpc) (1.0 ±0.3 s) Reconnect Voltage: 60.8 V (3.9 vpc) Balancing Voltage: 60.3 V (3.87 vpc) Temperature Specifications Discharge Temperature: -4 to 131 °F (-20 to 55 °C) Charge Temperature: -4 to 131 °F (-20 to 55 °C) *Refer to charge currents below 0°C (32°F) Storage Temperature: 23 to 95 °F (-5 to 35 °C) BMS High Temperature Cut-Off: 149 °F (65 °C) Reconnect Temperature: 145 °F (63 °C)
