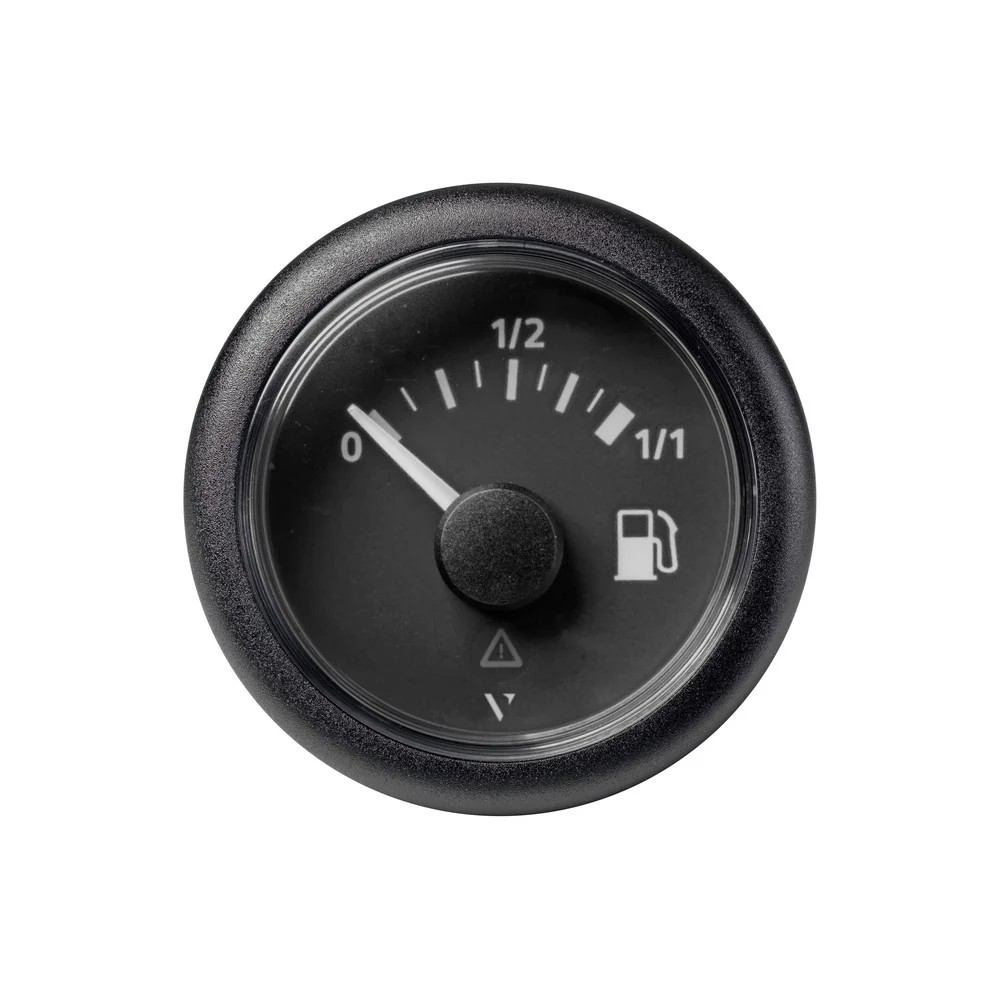

VDO Viewline Fuel Gauge 90-40Ohm 12/24v A2C59514079

Can be used with 90-4ohm Deep Pipe Level Sensor The ViewLine fuel gauge provides information about the fuel level in the tank and can be used with dip type tank sensors.

• 8 pole Tyco / Hirschmann MQS plug
• +/- 3.6° angle degree accuracy over the entire display range
• Input Ohm: 90-4 Ω
• Operating voltage 8-32 V
• Current consumption < 150 mA, with integrated warning light (LED)
• 90° display angle
• Optional makepoint switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm hole diameter
• 59 mm outside diameter
• 50 mm installation depth

What's in the Box?

• Fuel level gauge
• Adapter cable 8 pole
• Round bezel
• Spinlock nut
• Rubber seal
